North AmericaWok Ranges · Duck-Mouth Burner
13" & 16" · 95,000–125,000 BTU/h
2 models
Details
Wok Ranges
Hong Kong-Style Wok Ranges
1 – 6 holes · with warming chamber
Hong Kong-style wok ranges that add a warming chamber to the classic water-cooled wok line.
Certification
ETLETL Sanitation
27 models
CP-W1L0HCP-W1L1HCP-W2L0HCP-W2L1HCP-W2L2HCP-W3L0HCP-W3L1HCP-W3L2HCP-W3L3HCP-W4L0HCP-W4L1HCP-W4L2H+15 more
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Hong Kong style with warming chamber
- Water-cooled top with built-in drain system
- Swing faucet and knee-level "L" gas valve
- 95,000 BTU/h jet burners, 13" or 16" wok tops
- 1–6 burners in 27 standard combinations
At a glance
- Product family
- Wok Ranges
- Models in series
- 27
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Jet Burners | Pot Diameter (in) | Total BTU | Overall Dimensions (in / cm) | Package Size (in / cm) | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-W1L0H | NG / LP | 1 | 13" | 95,000 | 37.7"×46"×62"95.7×116.9×157.5cm | 41.4"×49.3"×39.4"105×125×100cm | |
| CP-W1L1H | NG / LP | 1 | 16" | 125,000 | 37.7"×46"×62"95.7×116.9×157.5cm | 41.4"×49.3"×39.4"105×125×100cm | |
| CP-W2L0H | NG / LP | 2 | 13"+13" | 190,000 | 57.3"×46"×62"145.7×116.9×157.5cm | 61"×49.3"×39.4"155×125×100cm | |
| CP-W2L1H | NG / LP | 2 | 13"+16" | 220,000 | 57.3"×46"×62"145.7×116.9×157.5cm | 61"×49.3"×39.4"155×125×100cm | |
| CP-W2L2H | NG / LP | 2 | 16"+16" | 250,000 | 57.3"×46"×62"145.7×116.9×157.5cm | 61"×49.3"×39.4"155×125×100cm | |
| CP-W3L0H | NG / LP | 3 | 13"+13"+13" | 285,000 | 77"×46"×62"195.7×116.9×157.5cm | 80.7"×49.3"×39.4"205×125×100cm | |
| CP-W3L1H | NG / LP | 3 | 13"+16"+13" | 315,000 | 77"×46"×62"195.7×116.9×157.5cm | 80.7"×49.3"×39.4"205×125×100cm | |
| CP-W3L2H | NG / LP | 3 | 16"+13"+16" | 345,000 | 77"×46"×62"195.7×116.9×157.5cm | 80.7"×49.3"×39.4"205×125×100cm | |
| CP-W3L3H | NG / LP | 3 | 16"+16"+16" | 375,000 | 77"×46"×62"195.7×116.9×157.5cm | 80.7"×49.3"×39.4"205×125×100cm | |
| CP-W4L0H | NG / LP | 4 | 13"+13"+13"+13" | 380,000 | 102.6"×46"×62"260.7×116.9×157.5cm | 107"×49.3"×39.4"272×125×100cm | |
| CP-W4L1H | NG / LP | 4 | 13"+16"+13"+13" | 410,000 | 102.6"×46"×62"260.7×116.9×157.5cm | 107"×49.3"×39.4"272×125×100cm | |
| CP-W4L2H | NG / LP | 4 | 13"+16"+16"+13" | 440,000 | 102.6"×46"×62"260.7×116.9×157.5cm | 107"×49.3"×39.4"272×125×100cm | |
| CP-W4L3H | NG / LP | 4 | 16"+16"+16"+13" | 470,000 | 102.6"×46"×62"260.7×116.9×157.5cm | 107"×49.3"×39.4"272×125×100cm | |
| CP-W4L4H | NG / LP | 4 | 16"+16"+16"+16" | 500,000 | 102.6"×46"×62"260.7×116.9×157.5cm | 107"×49.3"×39.4"272×125×100cm | |
| CP-W5L0H | NG / LP | 5 | 13"+13"+13"+13"+13" | 475,000 | 122.3"×46"×62"310.7×116.9×157.5cm | 128"×49.3"×39.4"325×125×100cm | |
| CP-W5L1H | NG / LP | 5 | 13"+13"+16"+13"+13" | 505,000 | 122.3"×46"×62"310.7×116.9×157.5cm | 128"×49.3"×39.4"325×125×100cm | |
| CP-W5L2H | NG / LP | 5 | 13"+16"+13"+16"+13" | 535,000 | 122.3"×46"×62"310.7×116.9×157.5cm | 128"×49.3"×39.4"325×125×100cm | |
| CP-W5L3H | NG / LP | 5 | 16"+13"+16"+13"+16" | 565,000 | 122.3"×46"×62"310.7×116.9×157.5cm | 128"×49.3"×39.4"325×125×100cm | |
| CP-W5L4H | NG / LP | 5 | 16"+16"+16"+16"+13" | 595,000 | 122.3"×46"×62"310.7×116.9×157.5cm | 128"×49.3"×39.4"325×125×100cm | |
| CP-W5L5H | NG / LP | 5 | 16"+16"+16"+16"+16" | 625,000 | 122.3"×46"×62"310.7×116.9×157.5cm | 128"×49.3"×39.4"325×125×100cm | |
| CP-W6L0H | NG / LP | 6 | 13"+13"+13"+13"+13"+13" | 570,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm | |
| CP-W6L1H | NG / LP | 6 | 13"+13"+16"+13"+13"+13" | 600,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm | |
| CP-W6L2H | NG / LP | 6 | 13"+13"+16"+16"+13"+13" | 630,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm | |
| CP-W6L3H | NG / LP | 6 | 16"+13"+16"+13"+13"+16" | 660,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm | |
| CP-W6L4H | NG / LP | 6 | 13"+16"+16"+16"+16"+13" | 690,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm | |
| CP-W6L5H | NG / LP | 6 | 16"+16"+16"+16"+16"+13" | 720,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm | |
| CP-W6L6H | NG / LP | 6 | 16"+16"+16"+16"+16"+16" | 750,000 | 142"×46"×62"360.7×116.9×157.5cm | 147"×49.3"×39.4"374×125×100cm |

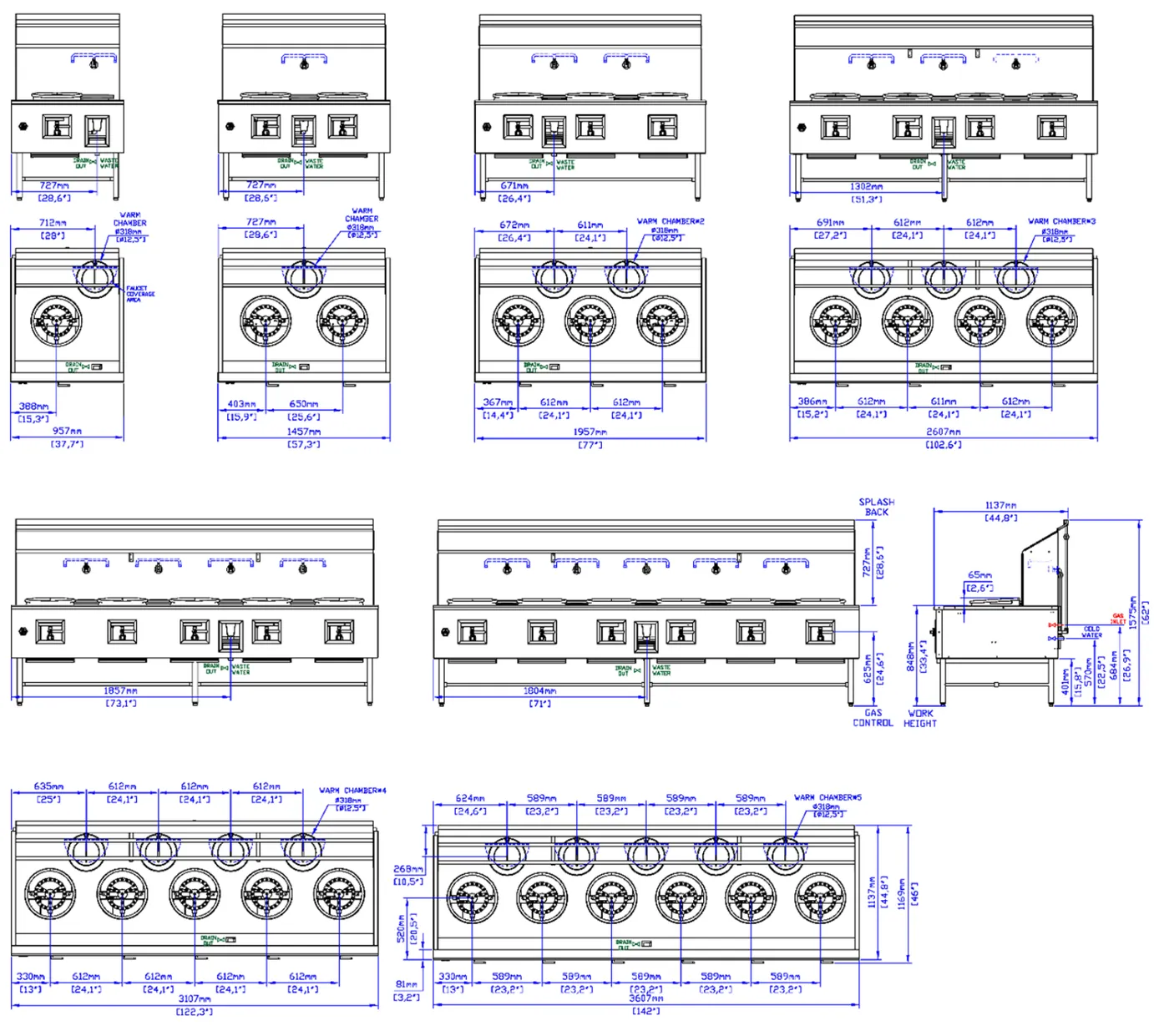

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections; supply gas pressure must not exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- Two gas inlet connections on W4, W5 and W6 series models
- Install the gas pressure regulator supplied with the unit
- Water inlet and drain outlet: 1/2" NPT female
- An adequate ventilation system is required
- 6" clearance at both sides and rear adjacent to combustible construction
Options & accessories
- Natural gas or liquid propane
- 13" or 16" wok tops; 1-6 burners with the combinations shown in the model table
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
