Wok Ranges
Chinese Wok Ranges · Cross-Jet
1 – 6 holes · up to 160,000 BTU/h per burner
Our highest-output wok line: cross-jet burners up to 160,000 BTU/h on a water-cooled stainless top.
Certification
ETLETL Sanitation
27 models
CP-JW1L0CP-JW1L1CP-JW2L0CP-JW2L1CP-JW2L2CP-JW3L0CP-JW3L1CP-JW3L2CP-JW3L3CP-JW4L0CP-JW4L1CP-JW4L2+15 more
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 120,000 BTU/h (13") or 160,000 BTU/h (16") cross-jet burners
- Water-cooled top with built-in drain system
- Swing faucet and knee-level "L" gas valve
- Stainless steel top, landing ledge, backsplash and pipe rack
- 1–6 burners in 27 standard combinations
At a glance
- Product family
- Wok Ranges
- Models in series
- 27
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Jet Burners | Pot Diameter (in) | Total BTU | Overall Dimensions (in / cm) | Package Size (in / cm) | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-JW1L0 | NG / LP | 1 | 13" | 120,000 | 27.8"×44"×62"70.7×111.8×157.5cm | 31.5"×47.3"×39.4"80×120×100cm | |
| CP-JW1L1 | NG / LP | 1 | 16" | 160,000 | 27.8"×44"×62"70.7×111.8×157.5cm | 31.5"×47.3"×39.4"80×120×100cm | |
| CP-JW2L0 | NG / LP | 2 | 13"+13" | 240,000 | 47.5"×44"×62"120.6×111.8×157.5cm | 51.2"×47.3"×39.4"130×120×100cm | |
| CP-JW2L1 | NG / LP | 2 | 13"+16" | 280,000 | 47.5"×44"×62"120.6×111.8×157.5cm | 51.2"×47.3"×39.4"130×120×100cm | |
| CP-JW2L2 | NG / LP | 2 | 16"+16" | 320,000 | 47.5"×44"×62"120.6×111.8×157.5cm | 51.2"×47.3"×39.4"130×120×100cm | |
| CP-JW3L0 | NG / LP | 3 | 13"+13"+13" | 360,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-JW3L1 | NG / LP | 3 | 13"+16"+13" | 400,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-JW3L2 | NG / LP | 3 | 16"+13"+16" | 440,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-JW3L3 | NG / LP | 3 | 16"+16"+16" | 480,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-JW4L0 | NG / LP | 4 | 13"+13"+13"+13" | 480,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-JW4L1 | NG / LP | 4 | 13"+16"+13"+13" | 520,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-JW4L2 | NG / LP | 4 | 13"+16"+16"+13" | 560,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-JW4L3 | NG / LP | 4 | 16"+16"+16"+13" | 600,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-JW4L4 | NG / LP | 4 | 16"+16"+16"+16" | 640,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-JW5L0 | NG / LP | 5 | 13"+13"+13"+13"+13" | 600,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-JW5L1 | NG / LP | 5 | 13"+13"+16"+13"+13" | 640,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-JW5L2 | NG / LP | 5 | 13"+16"+13"+16"+13" | 680,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-JW5L3 | NG / LP | 5 | 16"+13"+16"+13"+16" | 720,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-JW5L4 | NG / LP | 5 | 16"+16"+16"+16"+13" | 760,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-JW5L5 | NG / LP | 5 | 16"+16"+16"+16"+16" | 800,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-JW6L0 | NG / LP | 6 | 13"+13"+13"+13"+13"+13" | 720,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-JW6L1 | NG / LP | 6 | 13"+13"+16"+13"+13"+13" | 760,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-JW6L2 | NG / LP | 6 | 13"+13"+16"+16"+13"+13" | 800,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-JW6L3 | NG / LP | 6 | 16"+13"+16"+13"+13"+16" | 840,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-JW6L4 | NG / LP | 6 | 13"+16"+16"+16"+16"+13" | 880,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-JW6L5 | NG / LP | 6 | 16"+16"+16"+16"+16"+13" | 920,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-JW6L6 | NG / LP | 6 | 16"+16"+16"+16"+16"+16" | 960,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm |

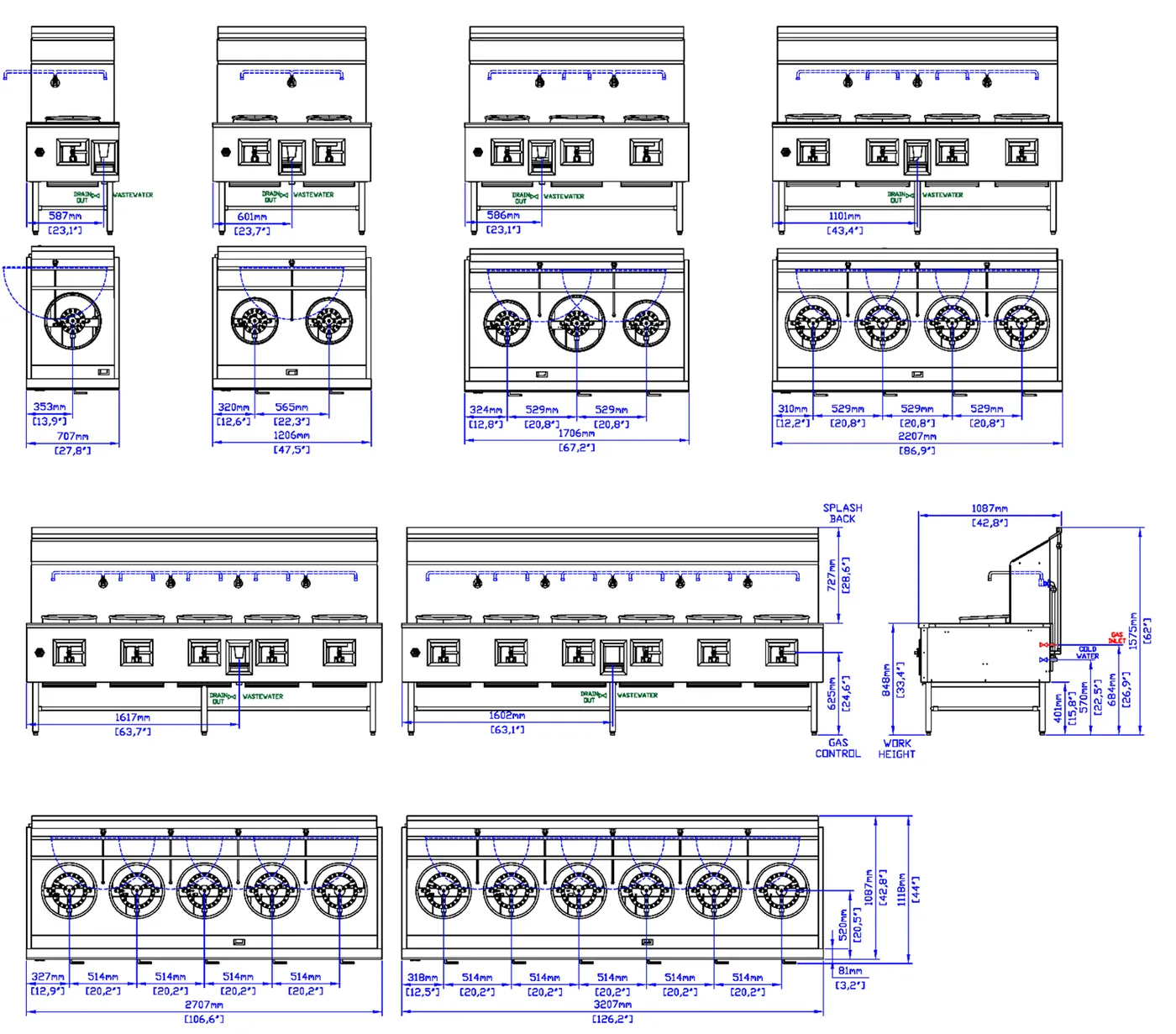

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections; supply gas pressure must not exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- Two gas inlet connections on W4, W5 and W6 series models
- Install the gas pressure regulator supplied with the unit
- Water inlet and drain outlet: 1/2" NPT female
- An adequate ventilation system is required
- 6" clearance at both sides and rear adjacent to combustible construction
Options & accessories
- Natural gas or liquid propane
- 13" or 16" wok tops; 1-6 burners with the combinations shown in the model table
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
