Thermostatic Gas Griddles · CE
24" – 60" · 140–300°C
CE-approved thermostatic griddles with flame-failure protection in four countertop sizes.
Certification
CE
4 models
CP-UG24TCP-UG36TCP-UG48TCP-UG60T
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- Thermostat range 140–300°C
- 8.5 kW (30.9 MJ/h) per 12" section
- Flame-failure protection
- All stainless steel cabinet; welded splash guards
- Removable grease drawer with weep hole
At a glance
- Product family
- Griddles
- Models in series
- 4
- Market
- Europe & International
- Certification
- CE
- Gas
- G20 G30 / G31
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total Power | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-UG24T | G20 G30 / G31 | 2 | 8.5 kW | 60.9×740×39.4cm | 68.6 kg | 70×85×49cm | 92 kg | |
| CP-UG36T | G20 G30 / G31 | 3 | 17 kW | 91.4×740×39.4cm | 100 kg | 100×85×49cm | 129 kg | |
| CP-UG48T | G20 G30 / G31 | 4 | 25.5 kW | 122×740×39.4cm | 129 kg | 130×85×49cm | 164 kg | |
| CP-UG60T | G20 G30 / G31 | 5 | 34 kW | 153×740×39.4cm | 159 kg | 160×85×49cm | 199 kg |

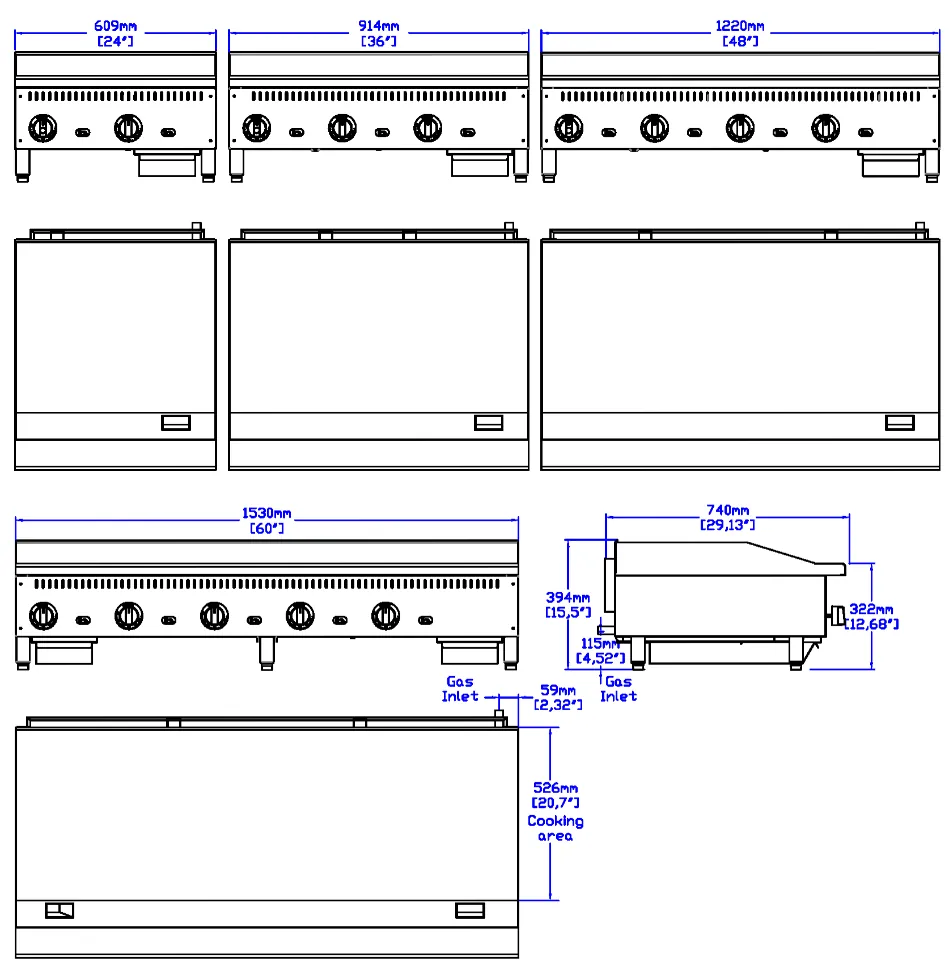

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Inlet pressure as below:
- G20 at 20mbar - I2H.I2E and I2E+
- G30/G31 at 30mbar - I3B/P(30)
- G30 at 28-30mbar G31 at 37 mbar - I3+(28-30-37)
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
