Thermostatic Gas Griddles
12" – 72" · 200–450°F
A thermostat on every 12" section holds the plate at the set temperature for repeatable results.
Certification
ETLNSF
6 models
CP-G12-TPCP-G24-TPCP-G36-TPCP-G48-TPCP-G60-TPCP-G72-TP
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Thermostat range 200–450°F (93–232°C)
- Thermostat control every 12"
- 28,000 BTU/h per 12" section
- Fully welded back and side splash guards
- 4-1/2 qt grease drawer with weep hole
- Shipped for natural gas; LP conversion kit included
At a glance
- Product family
- Griddles
- Models in series
- 6
- Market
- North America
- Certification
- ETL, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-G12-TP | NG / LP | 1 | 28,000 | 12"×28.7"×15.4"30.4×72.8×39.4cm | 117 lbs / 53 kg | 15.75"×35.5"×19.25"40×85×49cm | 143 lbs / 65 kg | |
| CP-G24-TP | NG / LP | 2 | 56,000 | 24"×28.7"×15.4"60.9×72.8×39.4cm | 156 lbs / 71 kg | 27.5"×35.5"×19.25"70×85×49cm | 240 lbs / 109 kg | |
| CP-G36-TP | NG / LP | 3 | 84,000 | 36"×28.7"×15.4"91.4×72.8×39.4cm | 220 lbs / 100 kg | 39.5"×35.5"×19.25"100×85×49cm | 338 lbs / 154 kg | |
| CP-G48-TP | NG / LP | 4 | 112,000 | 48"×28.7"×15.4"122×72.8×39.4cm | 348 lbs / 158 kg | 51.25"×35.5"×19.25"130×85×49cm | 424 lbs / 193 kg | |
| CP-G60-TP | NG / LP | 5 | 140,000 | 60"×28.7"×15.4"153×72.8×39.4cm | 484 lbs / 220 kg | 63"×35.5"×19.25"160×85×49cm | 567 lbs / 258 kg | |
| CP-G72-TP | NG / LP | 6 | 168,000 | 72"×28.7"×15.4"182.9×72.8×39.4cm | 651 lbs / 296 kg | 75"×35.5"×19.25"190×85×49cm | 759 lbs / 345 kg |

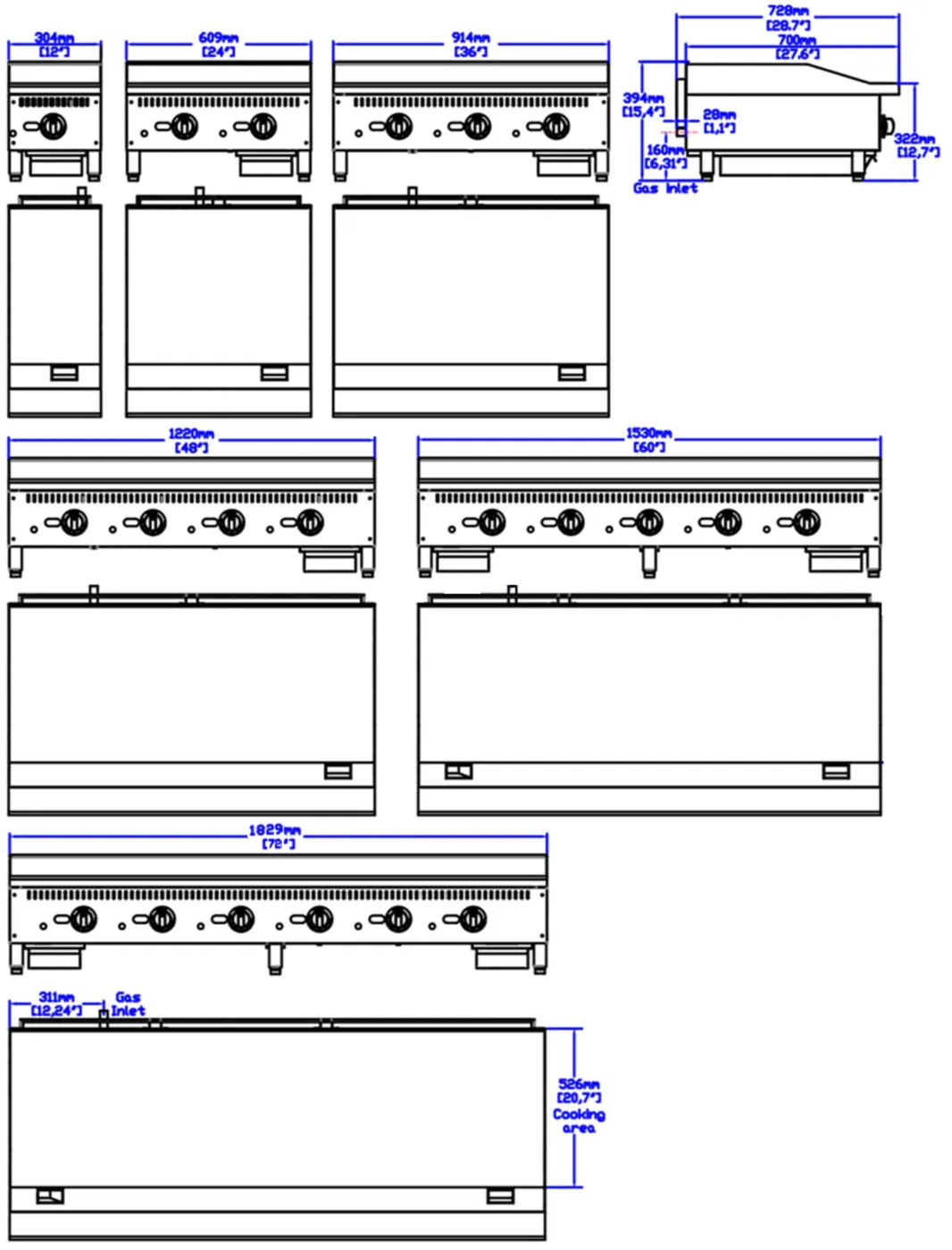

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
