Gas Griddles · CE
12" – 60" · 20 mm plate
CE-approved manual griddles with flame-failure protection and a 20 mm steel plate.
Certification
CE
5 models
CP-UG12CP-UG24CP-UG36CP-UG48CP-UG60
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- Flame-failure protection
- 20 mm thick griddle plate
- 8.5 kW per 12" section (8.5–42.5 kW total)
- G20, G30 and G31 gas categories
- Fully welded back and side splash guards; 4-1/2 qt grease drawer
At a glance
- Product family
- Griddles
- Models in series
- 5
- Market
- Europe & International
- Certification
- CE
- Gas
- G20 G30 / G31 · G20 G30 / G3
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total Power | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-UG12 | G20 G30 / G31 | 1 | 8.5 kW | 30.5×74×39.4cm | 45 kg | 40×85×49cm | 56 kg | |
| CP-UG24 | G20 G30 / G3 | 2 | 17 kW | 60.9×74×39.4cm | 68.6 kg | 70×85×49cm | 92 kg | |
| CP-UG36 | G20 G30 / G31 | 3 | 25.5 kW | 91.4×74×39.4cm | 100 kg | 100×85×49cm | 129 kg | |
| CP-UG48 | G20 G30 / G31 | 4 | 34 kW | 122×74×39.4cm | 129 kg | 130×85×49cm | 164 kg | |
| CP-UG60 | G20 G30 / G31 | 5 | 42.5 kW | 153×74×39.4cm | 159 kg | 160×85×49cm | 199 kg |

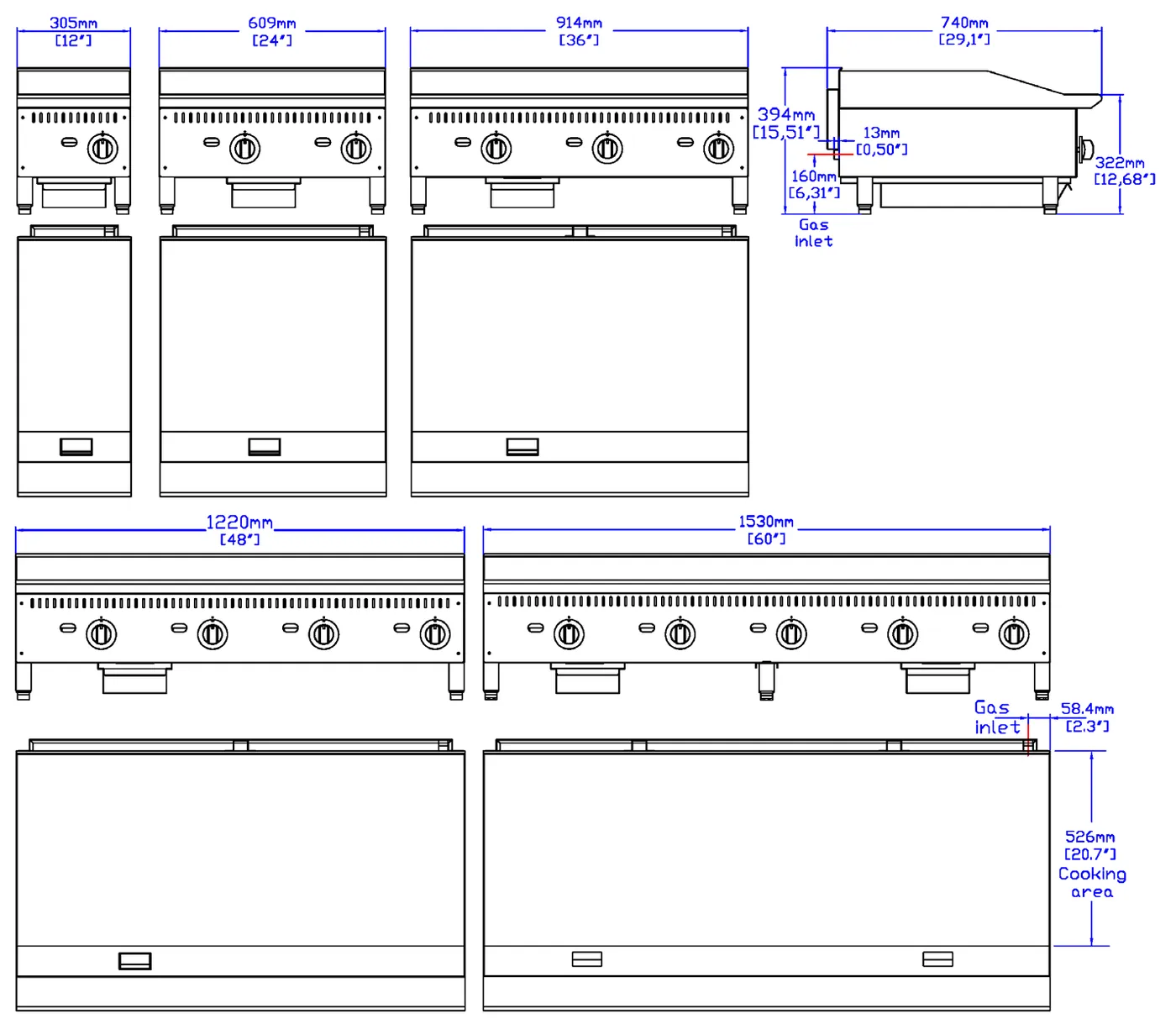

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Inlet pressure as below: G20 at 20mbar-I2H.I2EandI2E+ G30/G31 at 30mbar-I3B/P(30) G30 at 28-30mbar G31 at 37 mbar-I3+(28-30-37)
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
