Griddles
Electric Griddles
12" – 48" · thermostatic · 1" plate
Thermostatic electric griddles with a 1" plate, in polished steel or chrome.
Certification
ETLETL Sanitation
4 models
CP-12GE-TCP-24GE-TCP-36GE-TCP-48GE-T
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 1" thick griddle plate; polished steel or chrome
- Snap-action thermostat 150–450°F
- 3,000 / 4,000 W per 12" (208V / 240V)
- 220V versions available
- Welded splash guards; 4-1/2 qt grease drawer
At a glance
- Product family
- Griddles
- Models in series
- 4
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Electrical
- 208V / 240V
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Voltage (North American) | Heat Watts (North American) | Voltage (Others Area) | Heat Watts (Others Area) | Overall Dimensions (in / cm) | Net Weight (lbs / kg) | Package Size (in / cm) | Shipping Weight (lbs / kg) | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-12GE-T | 208V / 240V | 3,000 / 4,000 | 220V | 3,350 | 12"×29"×15.4"30.4×73.8×39.4cm | 99 lbs / 45 kg | 15.75"×33.5"×19.25"40×85×49cm | 136 lbs / 62 kg | |
| CP-24GE-T | 208V / 240V | 6,000 / 8,000 | 220V | 6,700 | 24"×29"×15.4"60.9×73.8×39.4cm | 151 lbs / 68.6 kg | 27.5×33.5"×19.25"70×85×49cm | 242 lbs / 110 kg | |
| CP-36GE-T | 208V / 240V | 9,000 / 12,000 | 220V | 10,000 | 36"×29"×15.4"91.4×73.8×39.4cm | 220 lbs / 100 kg | 39.5"×33.5"×19.25"100×85×49cm | 346 lbs / 157 kg | |
| CP-48GE-T | 208V / 240V | 12,000 / 16,000 | 220V | 13,350 | 24"×29"×15.4"122×73.8×39.4cm | 284 lbs / 129 kg | 51.25"×33.5"×19.25"130×85×49cm | 521 lbs / 237 kg |

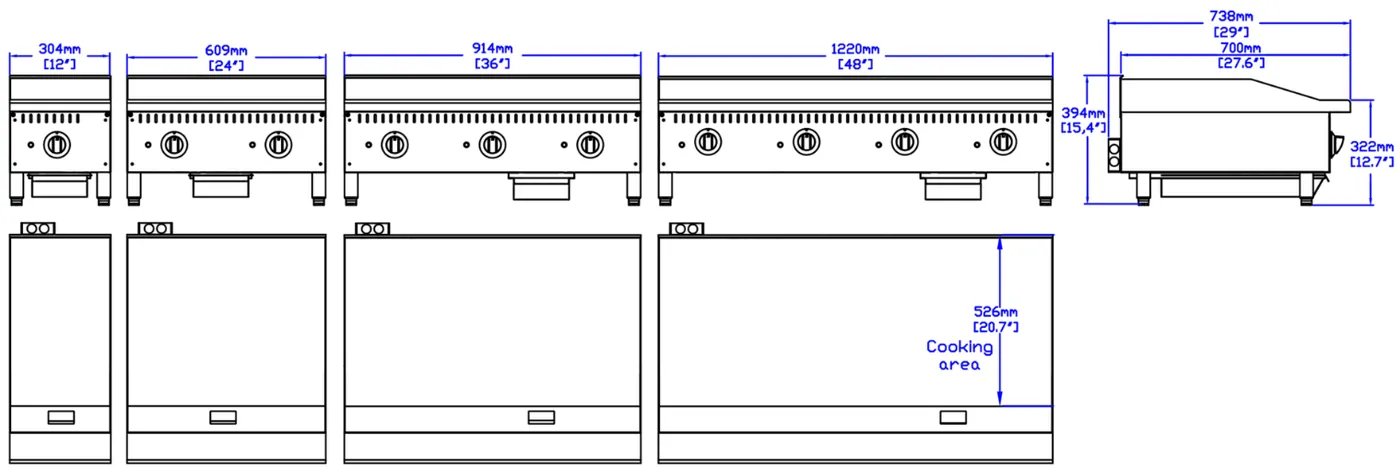

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Use copper wire for supply connections, suitable for at least 90°C (194°F)
- Adequate ventilation is required
- 1" clearance at both sides and rear adjacent to combustible construction
- 208/240V service for all models; hard-wired at installation for 1-phase and 3-phase
- Inform supplier of other voltages and phases; wattage varies with voltage
Options & accessories
- Polished steel or chrome griddle plate
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
