Hot Plates & Cooktops
Electric Hot Plates · 208/240V
15" – 36" · 2 kW per plate
Sealed 9" round elements with infinite controls for fast, even heating.
Certification
ETLETL Sanitation
4 models
CP-EHP15SCP-EHP15CP-EHP24CP-EHP36
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 9" (229 mm) sealed round plates, 2 kW each
- 15" single or dual, 24" and 36" widths
- Infinite heat controls; heavy-duty metal knobs
- Stainless steel front, top and sides
- NEMA 6-15P / 6-30P plugs on 15" models
At a glance
- Product family
- Hot Plates & Cooktops
- Models in series
- 4
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Electrical
- 208V/1P 240V/1P · 208V/3P 240V/1P
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Volts Phase | Watts/h | Amps | Plug or Supply connection | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-EHP15S | 208V/1P 240V/1P | 2000 | 8.3 | NEMA 6-15P | 15"×17.9"×14.8"38.1×45.4×37.5cm | 31 lbs / 14 kg | 18.9"×22.8"×19.3"48×58×49cm | 42 lbs / 19 kg | |
| CP-EHP15 | 208V/1P 240V/1P | 4000 | 16.7 | NEMA 6-30P | 15"×29.6"×14.8"38.1×75.1×37.5cm | 47 lbs / 21.5 kg | 18.9"×34.7"×19.3"48×88×49cm | 70 lbs / 32 kg | |
| CP-EHP24 | 208V/3P 240V/1P | 8000 | 16.6~33.3 | Junction Box | 24"×29.6"×14.8"61×75.1×37.5cm | 86 lbs / 39 kg | 27.6"×34.7"×19.3"70×88×49cm | 128 lbs / 58 kg | |
| CP-EHP36 | 208V/3P 240V/1P | 12000 | 25~50 | Junction Box | 36"×29.6"×14.8"91.4×75.1×37.5cm | 132 lbs / 60 kg | 39.4"×34.7"×19.3"100×88×49cm | 185 lbs / 84 kg |

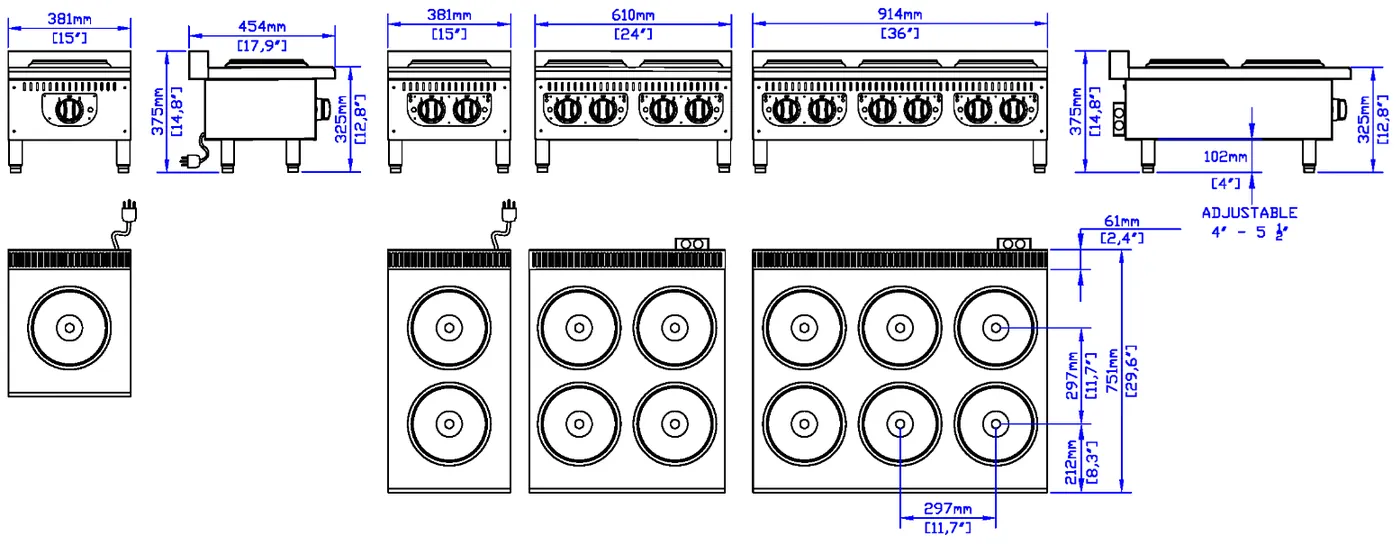

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Use copper wire for supply connections, suitable for at least 90°C (194°F)
- Adequate ventilation is required
- 1" clearance at both sides and rear adjacent to combustible construction
- * Single round-plate model: 3 ft. (91.4 cm) cord with NEMA 6-15P plug
- ** Dual round-plate model: 3 ft. (91.4 cm) cord with NEMA 6-30P plug
- 24" and 36" models must be hard-wired for 1-phase and 3-phase
Options & accessories
- 15" single or dual plates; 24" and 36" widths
