Step-Up Gas Hot Plates

Name: SWENZA Step-Up Gas Hot Plates
Brand: SWENZA

12" – 36" · 26,000 BTU/h per burner

Raised rear burners give cooks easy reach over front pots, making the most of limited line space.

Certification

ETLNSF

3 models

CP-HP12-SCP-HP24-SCP-HP36-S

Request a quotation WhatsApp

Key features

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

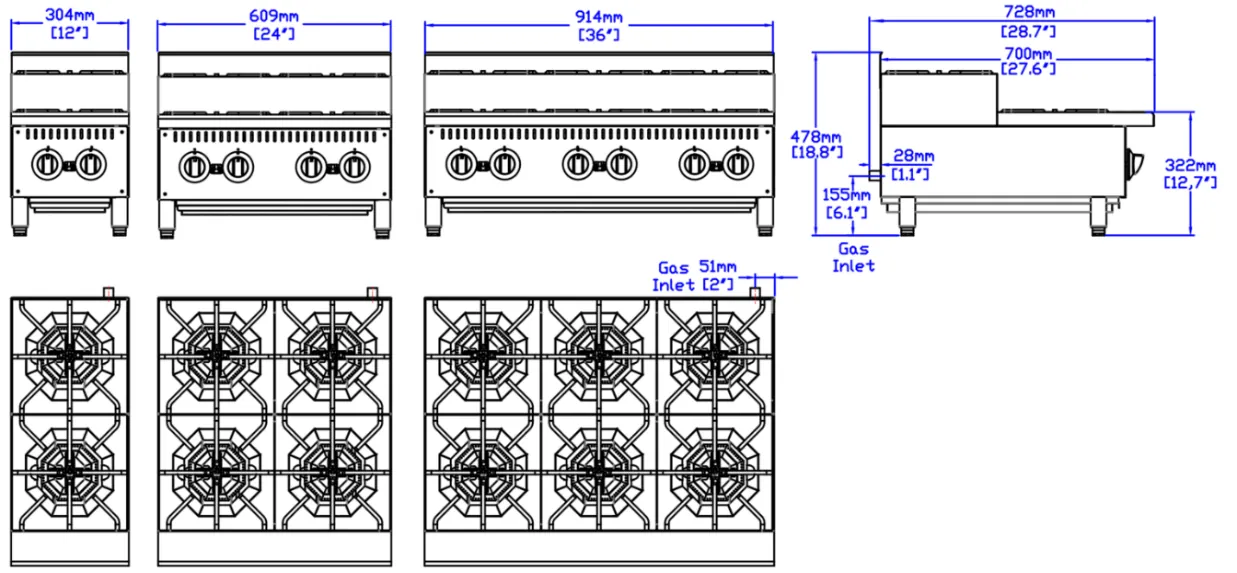

Model	Gas Type	Burners	Total BTU	Overall Dimensions	Net Weight	Package Size	Shipping Weight
CP-HP12-S	NG / LP	2	52,000	12"×28.7"×18.8"30.4×72.8×47.8cm	62 lbs / 28 kg	15.75"×33.5"×23.25"40×85×59cm	92 lbs / 42 kg
CP-HP24-S	NG / LP	4	104,000	24"×28.7"×18.8"60.9×72.8×47.8cm	107 lbs / 49 kg	27.5"×33.5"×23.25"70×85×59cm	145 lbs / 65 kg
CP-HP36-S	NG / LP	6	156,000	36"×28.7"×18.8"91.4×72.8×47.8cm	155 lbs / 71 kg	39.5"×33.5"×23.25"100×85×59cm	196 lbs / 89 kg

For commercial installation only; not intended for household use.
3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
A gas pressure regulator supplied with unit must be installed
An adequate ventilation system is required for Commercial Cooking Equipment
6" clearance required at both sides and rear from combustible construction.
