Gas Hot Plates

Name: SWENZA Gas Hot Plates
Brand: SWENZA

12" – 36" · 25,000 BTU/h per burner

Countertop open burners that line up at the same working height as our griddles and charbroilers for a clean, continuous cook line.

Certification

CSANSF

3 models

CP-HP12-MCP-HP24-MCP-HP36-M

Request a quotation WhatsApp

Key features

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

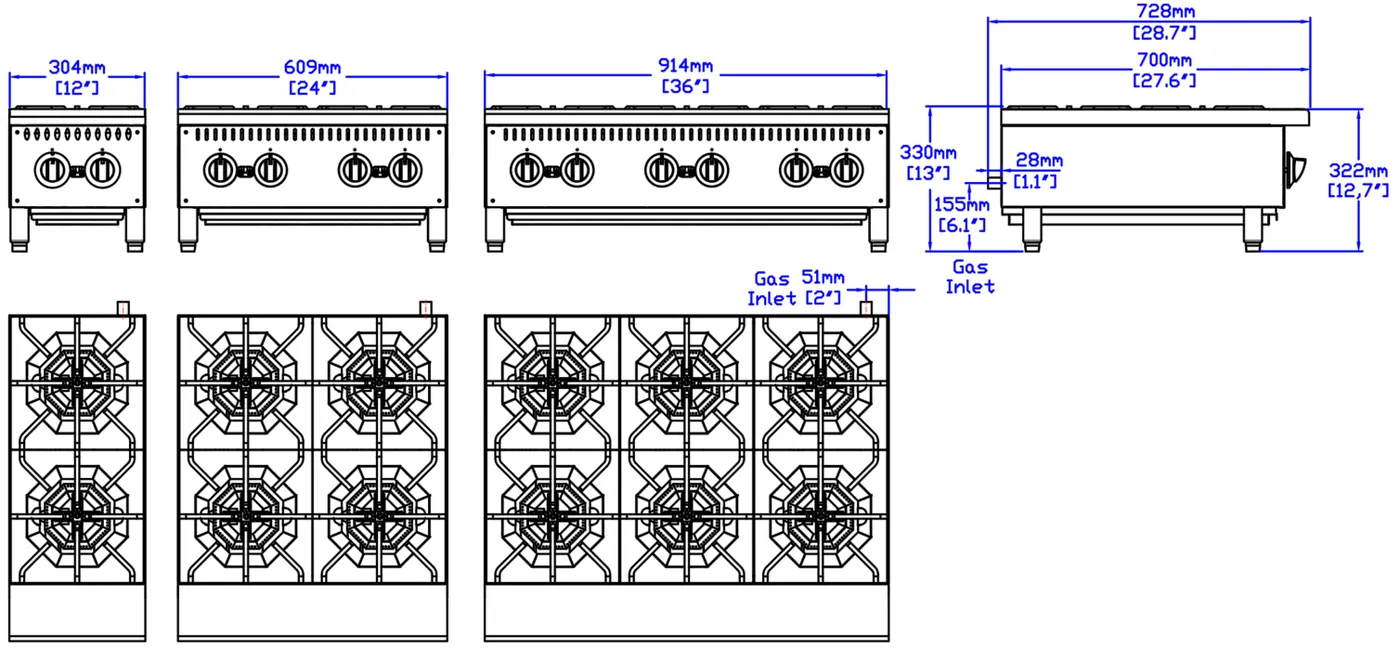

Model	Gas Type	Burners	Total BTU	Overall Dimensions	Net Weight	Package Size	Shipping Weight
CP-HP12-M	NG / LP	2	50,000	12"×28.7"×13"30.4×72.8×33cm	55 lbs / 25 kg	15.75"×33.5"×17.25"40×85×44cm	84 lbs / 38 kg
CP-HP24-M	NG / LP	4	100,000	24"×28.7"×13"60.9×72.8×33cm	96 lbs / 43.5 kg	27.5×33.5"×17.25"70×85×44cm	137 lbs / 62 kg
CP-HP36-M	NG / LP	6	150,000	36"×28.7"×13"91.4×72.8×33cm	136 lbs / 62 kg	39.5"×33.5"×17.25"100×85×44cm	189 lbs / 86 kg

For commercial installation only; not intended for household use.
3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
A gas pressure regulator supplied with unit must be installed
An adequate ventilation system is required for Commercial Cooking Equipment
6" clearance required at both sides and rear from combustible construction.
