Fryers & Pasta Cookers
Electric Floor Fryer · 208/240V
50 lb · 15.26 kW
A 50 lb electric fryer with submerged elements and a full-size frying area for fresh or frozen foods.
Certification
ETLETL Sanitation
1 model
CP-EF50
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 50 lb (27 L) oil capacity, 15.26 kW submerged elements
- Frying area 14" × 16.7" (357 × 425 mm)
- Snap-action thermostat 86–374°F (30–190°C)
- 1-1/4" full-port drain valve
- 208V or 240V, 1 or 3 phase
At a glance
- Product family
- Fryers & Pasta Cookers
- Models in series
- 1
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Electrical
- 208V-3P/1P 240V-3P/1P
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Volts Phase | Watts (kW/h) | Amps | Oil Capacity | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-EF50 | 208V-3P/1P 240V-3P/1P | 15.26 15.26 | 43A/75A 37A/64A | 50 lbs (27L) | 15.5"×30.2"×44.5"39.4×76.8×113cm | 110 lbs / 50 kg | 16.5"×32.3"×33"42×82×84cm | 130 lbs / 59 kg |

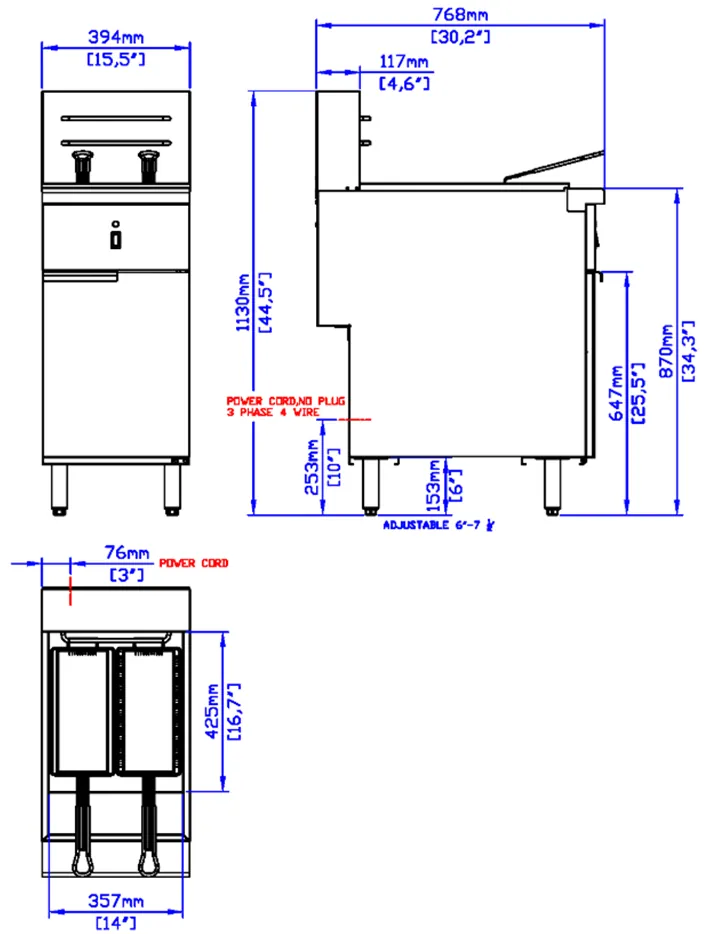

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Use only on non-combustible floors
- 6" clearance at both sides and rear adjacent to combustible construction
- Adequate ventilation is required
- Select voltage and phase before ordering
- No cord or plug provided; connect power supply at the rear junction box
- Order selection: 208V/3P, 208V/1P, 240V/3P or 240V/1P
Options & accessories
- Caster set (2 locking, 2 non-locking)
- Tank cleaning brush
- Side splash
- Tank cover
- Connector strip
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
