Gas Fryers · Solid-State Control
3, 4 & 5 tube · melt cycle · drain-valve interlock
Solid-state controls hold oil within ±3°F of set point for more consistent product and longer oil life, with melt cycle and drain-valve interlock as standard.
Certification
CSANSF
6 models
CP-F3S-NGCP-F3S-LPCP-F4S-NGCP-F4S-LPCP-F5S-NGCP-F5S-LP
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Solid-state thermostat 180–375°F (92–190°C), ±3°F at 350°F
- 30,000 BTU/h per tube: 90,000 / 120,000 / 150,000 BTU/h
- Melt cycle for solid or semi-solid shortening
- Drain-valve interlock (DVI) prevents dry firing
- Boil-out mode for safe, splash-free cleaning
- High-limit safety cuts the gas at 450°F (232°C)
- NEMA 5-15P 120V cord & plug (North America); 220V and local plug on request
At a glance
- Product family
- Fryers & Pasta Cookers
- Models in series
- 6
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG · LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Oil Capacity | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-F3S-NG | NG | 3 | 90,000 | 35-40 lbs / 17-20 L | 15.5"×31.3"×45.3"39.4×79.4×115cm | 128 lbs / 58 kg | 16.6"×32.3"×33.5"42×82×85cm | 147 lbs / 67 kg | |
| CP-F3S-LP | LP | 3 | 90,000 | 35-40 lbs / 17-20 L | 15.5"×31.3"×45.3"39.4×79.4×115cm | 128 lbs / 58 kg | 16.6"×32.3"×33.5"42×82×85cm | 147 lbs / 67 kg | |
| CP-F4S-NG | NG | 4 | 120,000 | 40-50 lbs / 20-23 L | 15.5"×31.3"×45.3"39.4×79.4×115cm | 141 lbs / 64 kg | 16.6"×32.3"×33.5"42×82×85cm | 158 lbs / 72 kg | |
| CP-F4S-LP | LP | 4 | 120,000 | 40-50 lbs / 20-23 L | 15.5"×31.3"×45.3"39.4×79.4×115cm | 141 lbs / 64 kg | 16.6"×32.3"×33.5"42×82×85cm | 158 lbs / 72 kg | |
| CP-F5S-NG | NG | 5 | 150,000 | 75-80 lbs / 36-42 L | 21"×34.4"×45.3"53.4×87.3×115cm | 185 lbs / 84 kg | 22.5"×36.3"×33.5"57×92×85cm | 207 lbs / 94 kg | |
| CP-F5S-LP | LP | 5 | 150,000 | 75-80 lbs / 36-42 L | 21"×34.4"×45.3"53.4×87.3×85cm | 185 lbs / 84 kg | 22.5"×36.3"×33.5"57×92×85cm | 207 lbs / 94 kg |

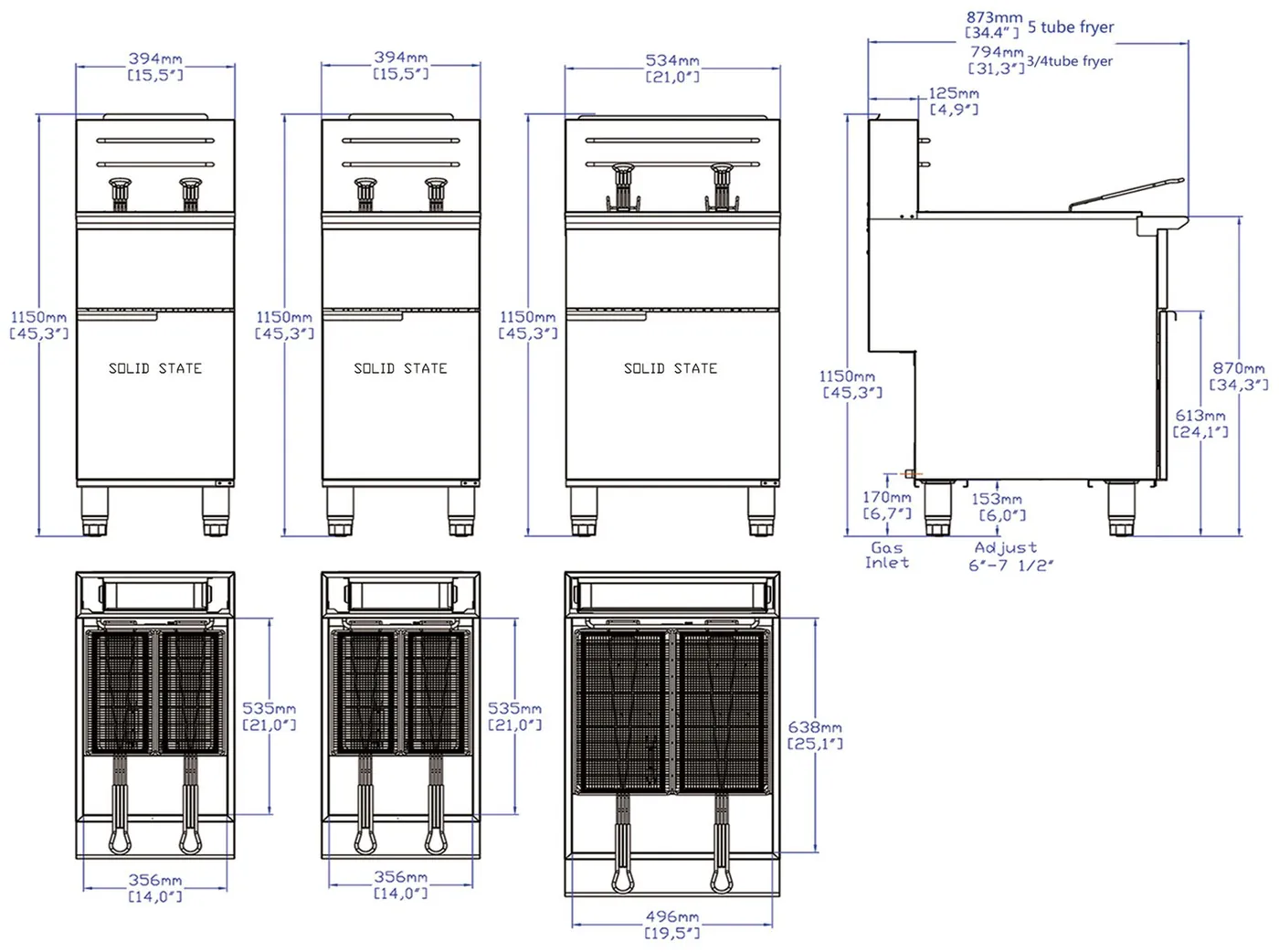

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Gas supply pipe,1/2" or 3/4" NPT rear gas connections Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- High-altitude orifices: Natural gas for above 2,000 ft; Propane gas for above 3,500 ft
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
- Conversion kits are not supplied; specify the gas type when ordering
