Gas Fryers · Millivolt Control

Name: SWENZA Gas Fryers · Millivolt Control
Brand: SWENZA

3, 4 & 5 tube · 90,000–150,000 BTU/h

Tube-type gas floor fryers with fast temperature recovery and a deep cold zone. Millivolt controls need no electrical connection, so the fryer works anywhere there is gas.

Certification

CSANSF

6 models

CP-F3-NGCP-F3-LPCP-F4-NGCP-F4-LPCP-F5-NGCP-F5-LP

Request a quotation WhatsApp

Spec sheet & drawings on request
Private label available
Built for US & Canada

Key features

Tube heat exchanger, 30,000 BTU/h (8.8 kW) per tube
3, 4 or 5 tubes: 90,000 / 120,000 / 150,000 BTU/h
Behind-the-door snap-action millivolt thermostat, no power required
Thermostat range 200–400°F (93–205°C)
High-limit safety cuts the gas at 450°F (232°C)
Peened stainless steel fry tank for a smooth, easy-clean finish
1-1/4" full-port drain valve for fast, complete draining
Twin baskets with coated handles; adjustable legs, casters optional

At a glance

Product family: Fryers & Pasta Cookers
Models in series: 6
Market: North America
Certification: CSA, NSF
Gas: NG · LP
Drawings: Dimension drawing below

Technical data

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

Request spec sheet

Model	Gas Type	Burners	Total BTU	Oil Capacity	Overall Dimensions	Net Weight	Package Size	Shipping Weight
CP-F3-NG	NG	3	90,000	35-40 lbs / 17-20 L	15.5"×31.3"×45.3"39.4×79.4×115cm	125.7 lbs / 57 kg	16.6"×32.3"×33.5"42×82×85cm	145 lbs / 66 kg
CP-F3-LP	LP	3	90,000	35-40 lbs / 17-20 L	15.5"×31.3"×45.3"39.4×79.4×115cm	125.7 lbs / 57 kg	16.6"×32.3"×33.5"42×82×85cm	145 lbs / 66 kg
CP-F4-NG	NG	4	120,000	40-50 lbs / 20-23 L	15.5"×31.3"×45.3"39.4×79.4×115cm	138.6 lbs / 63 kg	16.6"×32.3"×33.5"42×82×85cm	156 lbs / 71 kg
CP-F4-LP	LP	4	120,000	40-50 lbs / 20-23 L	15.5"×31.3"×45.3"39.4×79.4×115cm	138.6 lbs / 63 kg	16.6"×32.3"×33.5"42×82×85cm	156 lbs / 71 kg
CP-F5-NG	NG	5	150,000	75-80 lbs / 36-42 L	21"×34.4"×45.3"53.4×87.3×115cm	182.6 lbs / 83 kg	22.5"×36.3"×33.5"57×92×85cm	204 lbs / 93 kg
CP-F5-LP	LP	5	150,000	75-80 lbs / 36-42 L	21"×34.4"×45.3"53.4×87.3×115cm	182.6 lbs / 83 kg	22.5"×36.3"×33.5"57×92×85cm	204 lbs / 93 kg

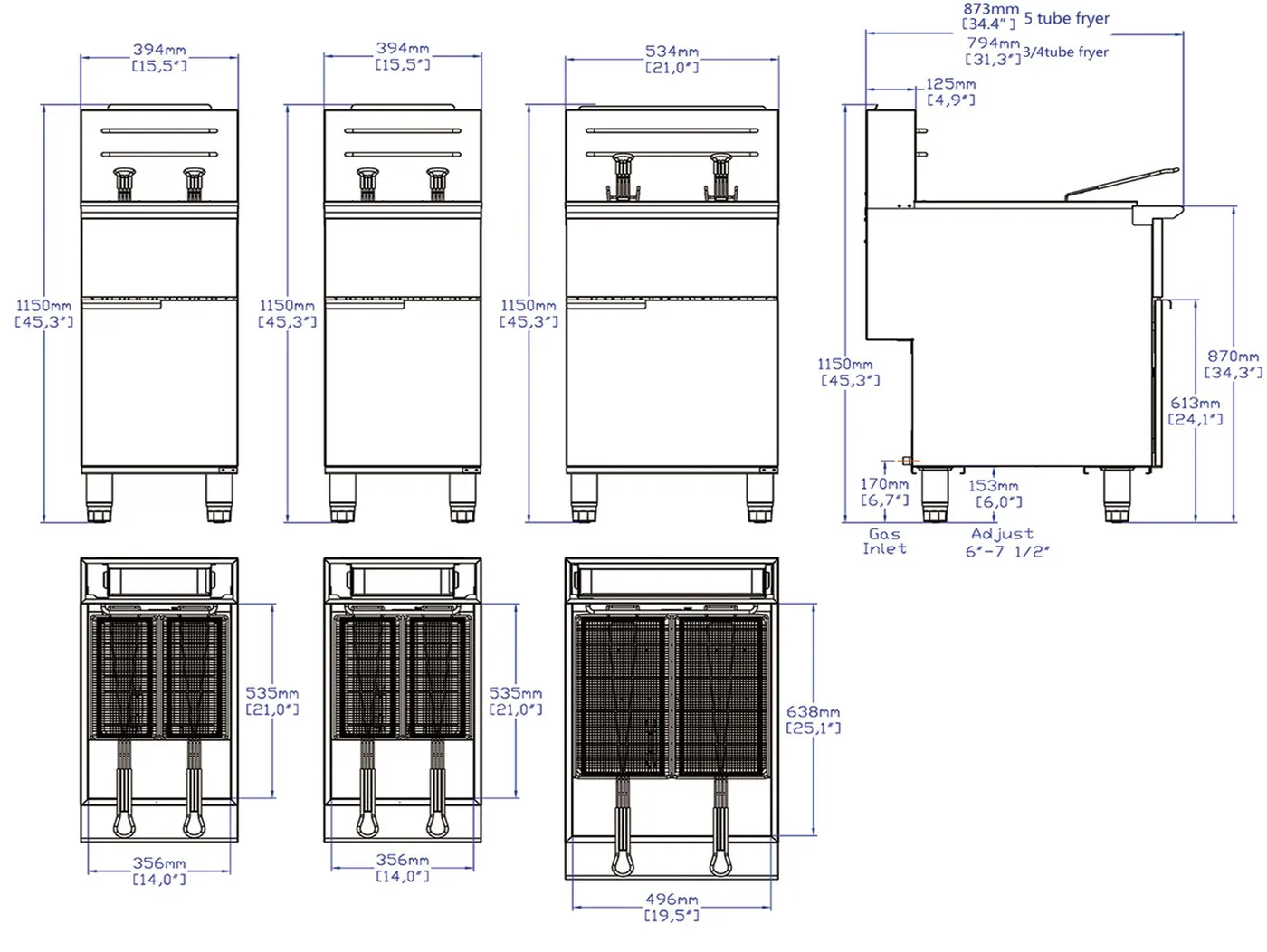

Dimension drawing

Open full size

Installation notes

For commercial installation only; not intended for household use.
1/2" or 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
High-altitude orifices: Natural gas for above 2,000 ft; Propane gas for above 3,500 ft
An adequate ventilation system is required for Commercial Cooking Equipment
6" clearance required at both sides and rear from combustible construction.
Conversion kits are not supplied; specify the gas type when ordering
