Deep Heavy-Duty Gas Charbroilers
18" – 60" · 60,000–200,000 BTU/h
Our deepest charbroiler: a 24" grill area with a burner every 6", heavy cast iron radiants and back and side splash guards.
Certification
ETLNSF
5 models
CP-CB18-DHCP-CB24-DHCP-CB36-DHCP-CB48-DHCP-CB60-DH
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 24" deep grilling area
- Straight burner every 6" for even heat
- Heavy-duty cast iron radiants and reversible grates
- Back and side splash guards
- 18" to 60" widths, 60,000–200,000 BTU/h
- Shipped for natural gas; LP conversion kit included
At a glance
- Product family
- Charbroilers
- Models in series
- 5
- Market
- North America
- Certification
- ETL, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-CB18-DH | NG / LP | 3 | 60,000 | 18"×32.6"×15.5"45.7×82.8×39.4cm | 123 lbs / 56 kg | 22"×37.5"×19.25"55×95×49cm | 159 lbs / 72 kg | |
| CP-CB24-DH | NG / LP | 4 | 80,000 | 24"×32.6"×15.5"60.9×82.8×39.4cm | 154 lbs / 70 kg | 28"×37.5"×19.25"70×95×49cm | 198 lbs / 90 kg | |
| CP-CB36-DH | NG / LP | 6 | 120,000 | 36"×32.6"×15.5"91.4×82.8×39.4cm | 214 lbs / 97 kg | 39.8"×37.5"×19.25"100×95×49cm | 268 lbs / 122 kg | |
| CP-CB48-DH | NG / LP | 8 | 160,000 | 48"×32.6"×15.5"122×82.8×39.4cm | 268 lbs / 122 kg | 51.2"×37.5"×19.25"130×95×49cm | 307 lbs / 153 kg | |
| CP-CB60-DH | NG / LP | 10 | 200,000 | 60"×32.6"×15.5"152.4×82.8×39.4cm | 350 lbs / 159 kg | 63"×37.5"×19.25"160×95×49cm | 427 lbs / 194 kg |

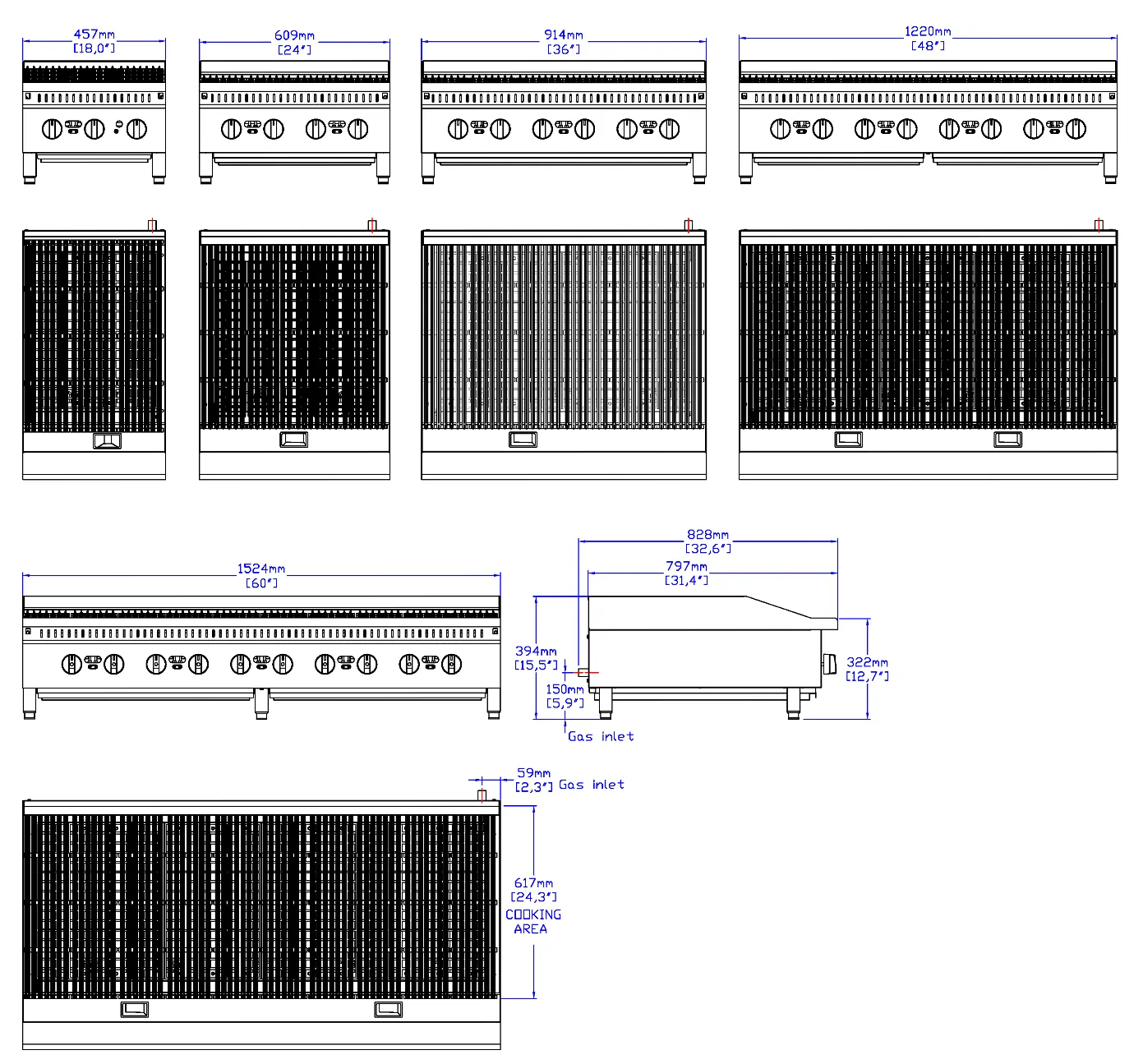

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI) Propane gas operating pressure -10.0" W.C,. Recommended supply pressure 11-12" W.C
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- A gas pressure regulator supplied with unit must be installe
- An adequate ventilation system is required for Commercial Cooking Equipmen
- Require a 6" clearance at both side and rear adjacent to combustible constructio
- ETL design certified NSF liste
