Ranges & Stock Pot Ranges
Gas Restaurant Ranges
24" – 60" · static oven
The heart of the line: open burners, griddles and charbroilers over one or two static ovens. 22 standard configurations from 24" to 60".
Certification
CSANSF
22 models
CP-R24CP-R24-12CBCP-R24-24MGCP-R24-24CBCP-R36CP-R36-36MGCP-R36-36CBCP-R36-24MGCP-R36-24CBCP-R48CP-R48-24MGCP-R48-24CB+10 more
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 30,000 BTU/h open burners (NG); 35,000 BTU/h charbroiler per 12"
- 33,000 BTU/h static oven, thermostat 200–500°F
- Oven cavity 20" or 26" wide × 22.5" × 13-3/4"
- Porcelain-coated oven interior side guides and bottom
- Stainless steel backriser with lift-off high shelf
- Shipped for natural gas; LP conversion kit included
At a glance
- Product family
- Ranges & Stock Pot Ranges
- Models in series
- 22
- Market
- North America
- Certification
- CSA, NSF
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Range Description | Width | Total BTU NG | Total BTU LP | Overall Dimensions (inch/mm) | Net Weight (lbs/kg) | Shipping Dimensions (inch/mm) | Shipping Weight (lbs/kg) | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-R24 | 24" 4 top burners | 24" | 153,000 | 136,000 | 24"×31.4"×60"61cm×80cm×152cm | 268 lbs / 122 kg | 27.6"×36.2"×43.7"70cm×92cm×111cm | 354 lbs / 161 kg | |
| CP-R24-12CB | 24" 12"charbroiler | 24" | 128,000 | 117,000 | 24"×31.4"×60"61cm×80cm×152cm | 289 lbs / 131 kg | 27.6"×36.2"×46.9"70cm×92cm×119cm | 375 lbs / 171 kg | |
| CP-R24-24MG | 24" 24"griddle | 24" | 93,000 | 82,000 | 24"×31.4"×60"61cm×80cm×152cm | 342 lbs /155 kg | 27.6"×36.2"×46.9"70cm×92cm×119cm | 427 lbs / 194 kg | |
| CP-R24-24CB | 24" 24"charbroiler | 24" | 103,000 | 98,000 | 24"×31.4"×60"61cm×80cm×152cm | 308 lbs / 140 kg | 27.6"×36.2"×46.9"70cm×92cm×119cm | 394 lbs / 179 kg | |
| CP-R36 | 36" 6 top burners | 36" | 213,000 | 190,000 | 36"×31.4"×60"91cm×80cm×152cm | 364 lbs / 165 kg | 39.4"×36.6"×43.7"100cm×93cm×111cm | 467 lbs / 212 kg | |
| CP-R36-36MG | 36" 36"griddle | 36" | 123,000 | 109,000 | 36"×31.4"×60"91cm×80cm×152cm | 442 lbs / 201 kg | 39.4"×36.6"×46.9"100cm×93cm×119cm | 551 lbs / 250 kg | |
| CP-R36-36CB | 36" 36"Charbroiler | 36" | 138,000 | 133,000 | 36"×31.4"×60"91cm×80cm×152cm | 379 lbs / 172 kg | 39.4"×36.6"×46.9"100cm×93cm×119cm | 488 lbs / 222 kg | |
| CP-R36-24MG | 36" 2 top burner+24" griddle | 36" | 153,000 | 136,000 | 36"×31.4"×60"91cm×80cm×152cm | 418 lbs / 189 kg | 39.4"×36.6"×46.9"100cm×93cm×119cm | 527 lbs / 239 kg | |
| CP-R36-24CB | 36" 2 top burner+24" charbroiler | 36" | 163,000 | 152,000 | 36"×31.4"×60"91cm×80cm×152cm | 372 lbs / 169 kg | 39.4"×36.6"×46.9"100cm×93cm×119cm | 484 lbs / 220 kg | |
| CP-R48 | 48" 8 top burners | 48" | 306,000 | 272,000 | 48"×31.4"×60"122cm×80cm×152cm | 525 lbs / 238 kg | 51.2"×36.6"×43.7"130cm×93cm×111cm | 643 lbs / 292 kg | |
| CP-R48-24MG | 48" 4 top burner+24" griddle | 48" | 246,000 | 218,000 | 48"×31.4"×60"122cm×80cm×152cm | 579 lbs / 263 kg | 51.2"×36.6"×46.9"130cm×93cm×119cm | 702 lbs / 319 kg | |
| CP-R48-24CB | 48" 4 top burner+24" charbroiler | 48" | 256,000 | 234,000 | 48"×31.4"×60"122cm×80cm×152cm | 538 lbs / 244 kg | 51.2"×36.6"×46.9"130cm×93cm×119cm | 661 lbs / 300 kg | |
| CP-R48-36MG | 48" 2 top burner+36" griddle | 48" | 216,000 | 200,000 | 48"×31.4"×60"122cm×80cm×152cm | 603 lbs / 274 kg | 51.2"×36.6"×46.9"130cm×93cm×119cm | 724 lbs / 329 kg | |
| CP-R48-36CB | 48" 2 top burner+36" charbroiler | 48" | 231,000 | 215,000 | 48"×31.4"×60"122cm×80cm×152cm | 559 lbs / 254 kg | 51.2"×36.6"×46.9"130cm×93cm×119cm | 680 lbs / 309 kg | |
| CP-R60 | 60" 10 top burners | 60" | 366,000 | 326,000 | 60"×31.4"×60"153cm×80cm×152cm | 621 lbs / 282 kg | 63"×36.6"×43.7"160cm×92cm×111cm | 749 lbs / 340 kg | |
| CP-R60-24MG | 60" 6 top burners+24"griddle | 60" | 306,000 | 272,000 | 60"×31.4"×60"153cm×80cm×152cm | 674 lbs / 306 kg | 63"×36.6"×46.9"160cm×93cm×119cm | 818 lbs / 371 kg | |
| CP-R60-24TG | 60" 6 top burners+24"T-griddle | 60" | 306,000 | 272,000 | 60"×31.4"×60"153cm×80cm×152cm | 708 lbs / 322 kg | 63"×36.6"×46.9"160cm×93cm×119cm | 864 lbs / 392 kg | |
| CP-R60-24CB | 60" 6 top burners+24"charbroiler | 60" | 316,000 | 288,000 | 60"×31.4"×60"153cm×80cm×152cm | 637 lbs / 289 kg | 63"×36.6"×46.9"160cm×93cm×119cm | 774 lbs / 351 kg | |
| CP-R60-36MG | 60" 4 top burners+36"griddle | 60" | 276,000 | 254,000 | 60"×31.4"×60"153cm×80cm×152cm | 700 lbs / 318 kg | 63"×36.6"×46.9"160cm×93cm×119cm | 836 lbs /380 kg | |
| CP-R60-36TG | 60" 4 top burners+36"T-griddle | 60" | 276,000 | 254,000 | 60"×31.4"×60"153cm×80cm×152cm | 761 lbs / 346 kg | 63"×36.6"×46.9"160cm×93cm×119cm | 898 lbs / 408 kg | |
| CP-R60-36CB | 60" 4 top burners+36"charbroiler | 60" | 291,000 | 279,000 | 60"×31.4"×60"153cm×80cm×152cm | 636 lbs / 289 kg | 63"×36.6"×46.9"160cm×93cm×119cm | 772 lbs / 351 kg | |
| CP-R60-24RG | 60" 6 top burners+24"raise griddle | 60" | 306,000 | 272,000 | 60"×31.4"×60"153cm×80cm×152cm | 695 lbs / 316 kg | 63"×36.6"×49.6"160cm×92cm×126cm | 838 lbs / 381 kg |

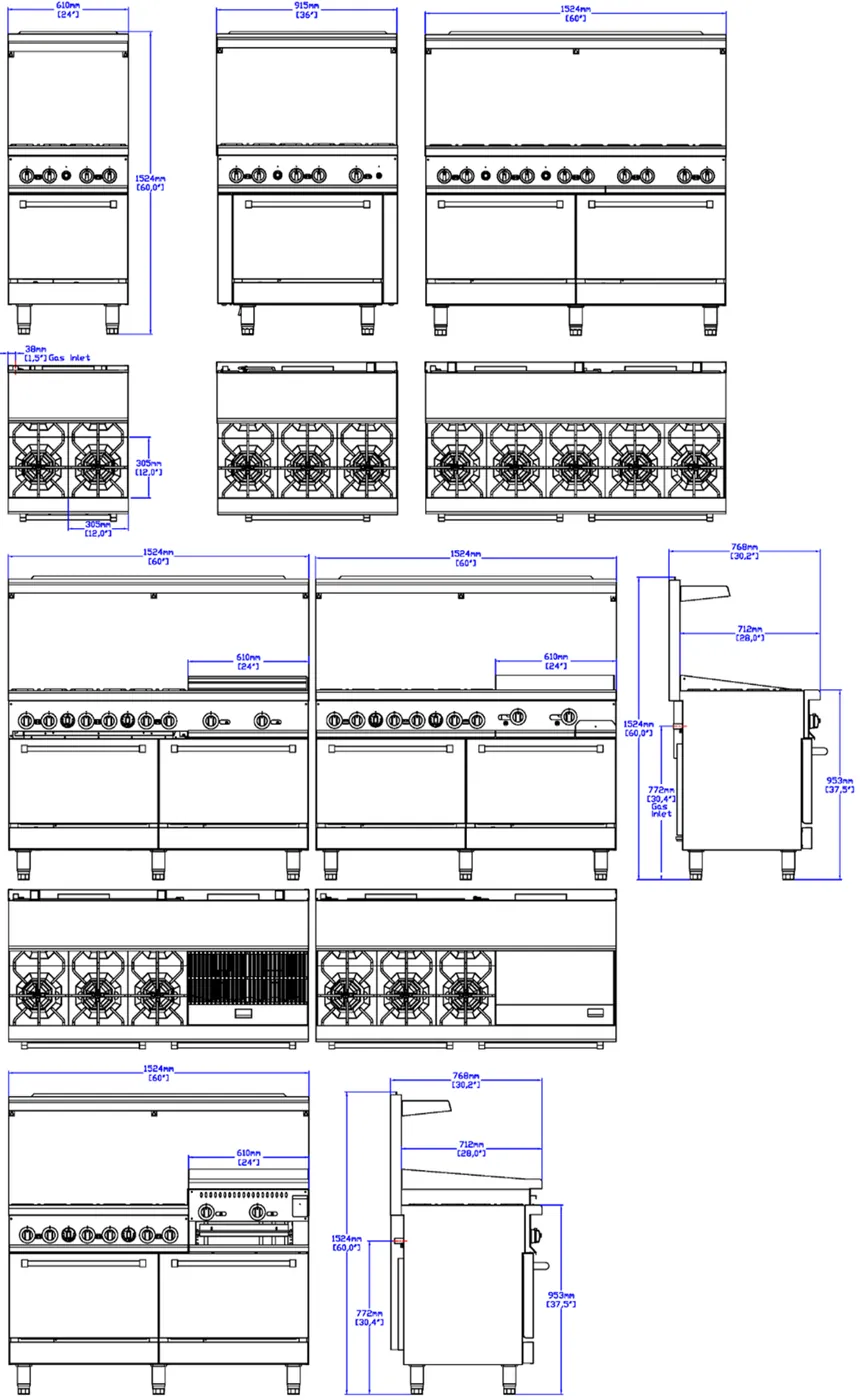

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
- Overall size diagrams show some typical models for example
Options & accessories
- Optional casters
