Gas Ranges with Convection Oven

Name: SWENZA Gas Ranges with Convection Oven
Brand: SWENZA

24" – 60" · convection oven base

The same flexible range tops over convection ovens for more even baking. The fan can be switched off to run as a standard oven.

Certification

CSANSF

22 models

CP-CR24CP-CR24-12CBCP-CR24-24MGCP-CR24-24CBCP-CR36CP-CR36-36MGCP-CR36-36CBCP-CR36-24MGCP-CR36-24CBCP-CR48CP-CR48-24MGCP-CR48-24CB+10 more

Request a quotation WhatsApp

Spec sheet & drawings on request
Private label available
Built for US & Canada

Key features

Convection oven base for better temperature uniformity
Fan can be switched off for static-oven mode
Hot plate, griddle (manual or thermostatic) and charbroiler tops
Oven thermostat 200–500°F; porcelain-coated interior
6 ft cord with NEMA 5-15P plug; 220V on request
Shipped for natural gas; LP conversion kit included

At a glance

Product family: Ranges & Stock Pot Ranges
Models in series: 22
Market: North America
Certification: CSA, NSF
Drawings: Dimension drawing below

Technical data

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

Request spec sheet

Model	Gas Range Description	Width	Total BTU NG	Total BTU LP	Overall Dimensions (inch/mm)	Net Weight (lbs/kg)	Shipping Dimensions (inch/mm)	Shipping Weight (lbs/kg)
CP-CR24	24" 4 top burners	24"	153,000	136,000	24"×31.4"×60"61cm×80cm×152cm	275 lbs / 125 kg	27.6"×36.2"×43.7"70cm×92cm×111cm	361 lbs / 164 kg
CP-CR24-12CB	24" 12"charbroiler	24"	128,000	117,000	24"×31.4"×60"61cm×80cm×152cm	296 lbs / 134 kg	27.6"×36.2"×46.9"70cm×92cm×119cm	382 lbs / 174 kg
CP-CR24-24MG	24" 24"griddle	24"	93,000	82,000	24"×31.4"×60"61cm×80cm×152cm	349 lbs /158 kg	27.6"×36.2"×46.9"70cm×92cm×119cm	434 lbs / 197 kg
CP-CR24-24CB	24" 24"charbroiler	24"	103,000	98,000	24"×31.4"×60"61cm×80cm×152cm	315 lbs / 143 kg	27.6"×36.2"×46.9"70cm×92cm×119cm	401 lbs / 182 kg
CP-CR36	36" 6 top burners	36"	213,000	190,000	36"×31.4"×60"91cm×80cm×152cm	375 lbs / 170 kg	39.4"×36.6"×43.7"100cm×93cm×111cm	478 lbs / 217 kg
CP-CR36-36MG	36" 36"griddle	36"	123,000	109,000	36"×31.4"×60"91cm×80cm×152cm	453 lbs / 206 kg	39.4"×36.6"×46.9"100cm×93cm×119cm	562 lbs / 255 kg
CP-CR36-36CB	36" 36"Charbroiler	36"	138,000	133,000	36"×31.4"×60"91cm×80cm×152cm	390 lbs / 177 kg	39.4"×36.6"×46.9"100cm×93cm×119cm	499 lbs / 227 kg
CP-CR36-24MG	36" 2 top burner+24" griddle	36"	153,000	136,000	36"×31.4"×60"91cm×80cm×152cm	429 lbs / 194 kg	39.4"×36.6"×46.9"100cm×93cm×119cm	538 lbs / 244 kg
CP-CR36-24CB	36" 2 top burner+24" charbroiler	36"	163,000	152,000	36"×31.4"×60"91cm×80cm×152cm	383 lbs / 174 kg	39.4"×36.6"×46.9"100cm×93cm×119cm	495 lbs / 225 kg
CP-CR48	48" 8 top burners	48"	306,000	272,000	48"×31.4"×60"122cm×80cm×152cm	538 lbs / 244 kg	51.2"×36.6"×43.7"130cm×93cm×111cm	656 lbs / 298 kg
CP-CR48-24MG	48" 4 top burner+24" griddle	48"	246,000	218,000	48"×31.4"×60"122cm×80cm×152cm	592 lbs / 269 kg	51.2"×36.6"×46.9"130cm×93cm×119cm	715 lbs / 325 kg
CP-CR48-24CB	48" 4 top burner+24" charbroiler	48"	256,000	234,000	48"×31.4"×60"122cm×80cm×152cm	551 lbs / 250 kg	51.2"×36.6"×46.9"130cm×93cm×119cm	674 lbs / 306 kg
CP-CR48-36MG	48" 2 top burner+36" griddle	48"	216,000	200,000	48"×31.4"×60"122cm×80cm×152cm	616 lbs / 280 kg	51.2"×36.6"×46.9"130cm×93cm×119cm	737 lbs / 335 kg
CP-CR48-36CB	48" 2 top burner+36" charbroiler	48"	231,000	215,000	48"×31.4"×60"122cm×80cm×152cm	572 lbs / 290 kg	51.2"×36.6"×46.9"130cm×93cm×119cm	693 lbs / 315 kg
CP-CR60	60" 10 top burners	60"	366,000	326,000	60"×31.4"×60"153cm×80cm×152cm	643 lbs / 292 kg	63"×36.6"×43.7"160cm×92cm×111cm	771 lbs / 350 kg
CP-CR60-24MG	60" 6 top burners+24"griddle	60"	306,000	272,000	60"×31.4"×60"153cm×80cm×152cm	696 lbs / 316 kg	63"×36.6"×46.9"160cm×93cm×119cm	840 lbs / 381 kg
CP-CR60-24TG	60" 6 top burners+24"T-griddle	60"	306,000	272,000	60"×31.4"×60"153cm×80cm×152cm	730 lbs / 332 kg	63"×36.6"×46.9"160cm×93cm×119cm	886 lbs / 402 kg
CP-CR60-24CB	60" 6 top burners+24"charbroiler	60"	316,000	288,000	60"×31.4"×60"153cm×80cm×152cm	659 lbs / 299 kg	63"×36.6"×46.9"160cm×93cm×119cm	796 lbs / 361 kg
CP-CR60-36MG	60" 4 top burners+36"griddle	60"	276,000	254,000	60"×31.4"×60"153cm×80cm×152cm	722 lbs / 328 kg	63"×36.6"×46.9"160cm×93cm×119cm	848 lbs /390 kg
CP-CR60-36TG	60" 4 top burners+36"T-griddle	60"	276,000	254,000	60"×31.4"×60"153cm×80cm×152cm	783 lbs / 356 kg	63"×36.6"×46.9"160cm×93cm×119cm	920 lbs / 418 kg
CP-CR60-36CB	60" 4 top burners+36"charbroiler	60"	291,000	279,000	60"×31.4"×60"153cm×80cm×152cm	658 lbs / 299 kg	63"×36.6"×46.9"160cm×93cm×119cm	784 lbs / 361 kg
CP-CR60-24RG	60" 6 top burners+24"raise griddle	60"	306,000	272,000	60"×31.4"×60"153cm×80cm×152cm	717 lbs / 326 kg	63"×36.6"×49.6"160cm×92cm×126cm	860 lbs / 391 kg

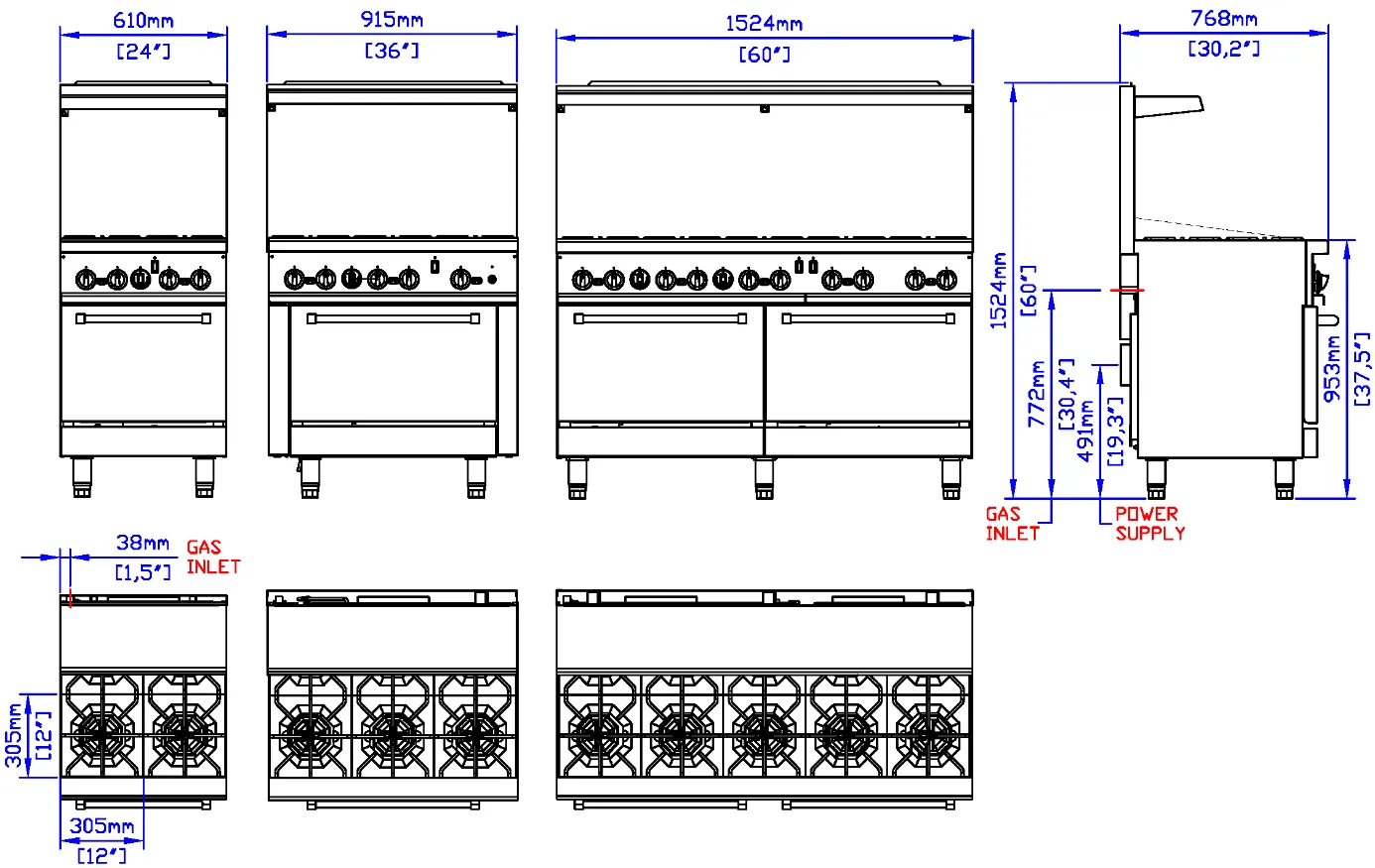

Dimension drawing

Open full size

Installation notes

For commercial installation only; not intended for household use.
3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
A gas pressure regulator supplied with unit must be installed
An adequate ventilation system is required for Commercial Cooking Equipment
6" clearance required at both sides and rear from combustible construction.
NEMA 5-15P 120 volt cord & plug (North America). 220V and local plug types must be specified when ordering (other markets)
Overall size diagrams show some typical models for example
