North AmericaCommercial Outdoor Grills
30" – 72" · all 304 stainless steel
5 models
Details
Outdoor Cooking
Mobile Outdoor Fryers
Single & double tank · 93,000 BTU/h per tank
Fully mobile fryers for caterers, rental companies and events. A standard 30 lb propane tank gives roughly 10–12 hours of frying.
Certification
ETLNSF
2 models
CP-OFCP-DOF
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 93,000 BTU/h per tank; cooks 60–65 lb of frozen fries per hour
- 35–40 lb oil capacity per tank
- Millivolt thermostat 200–400°F (93–205°C); 450°F high-limit
- 304 stainless steel cabinet with 4 locking casters
- Built-in holder for a 30 lb vertical propane cylinder
- Two-stage regulator and hose on LP models; side shelves optional
At a glance
- Product family
- Outdoor Cooking
- Models in series
- 2
- Market
- North America
- Certification
- ETL, NSF
- Gas
- NG/LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Oil Capacity | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-OF | NG/LP | 3 | 93,000 | 35-40 lbs / 17-20 L | 29.8"×31.3"×47.7"75.6×79.5×121cm | 172 lbs / 78 kg | 35.8"×34.6"×50.4"91×88×128cm | 264 lbs / 120 kg | |
| CP-DOF | NG/LP | 6 | 186,000 | 35-40 *2 lbs / 17-20 *2 L | 46.3"×31.3"×47.7"117.6×79.5×121cm | 275 lbs / 125 kg | 52"×34.6"×50.4"132×88×128cm | 396 lbs / 180 kg |

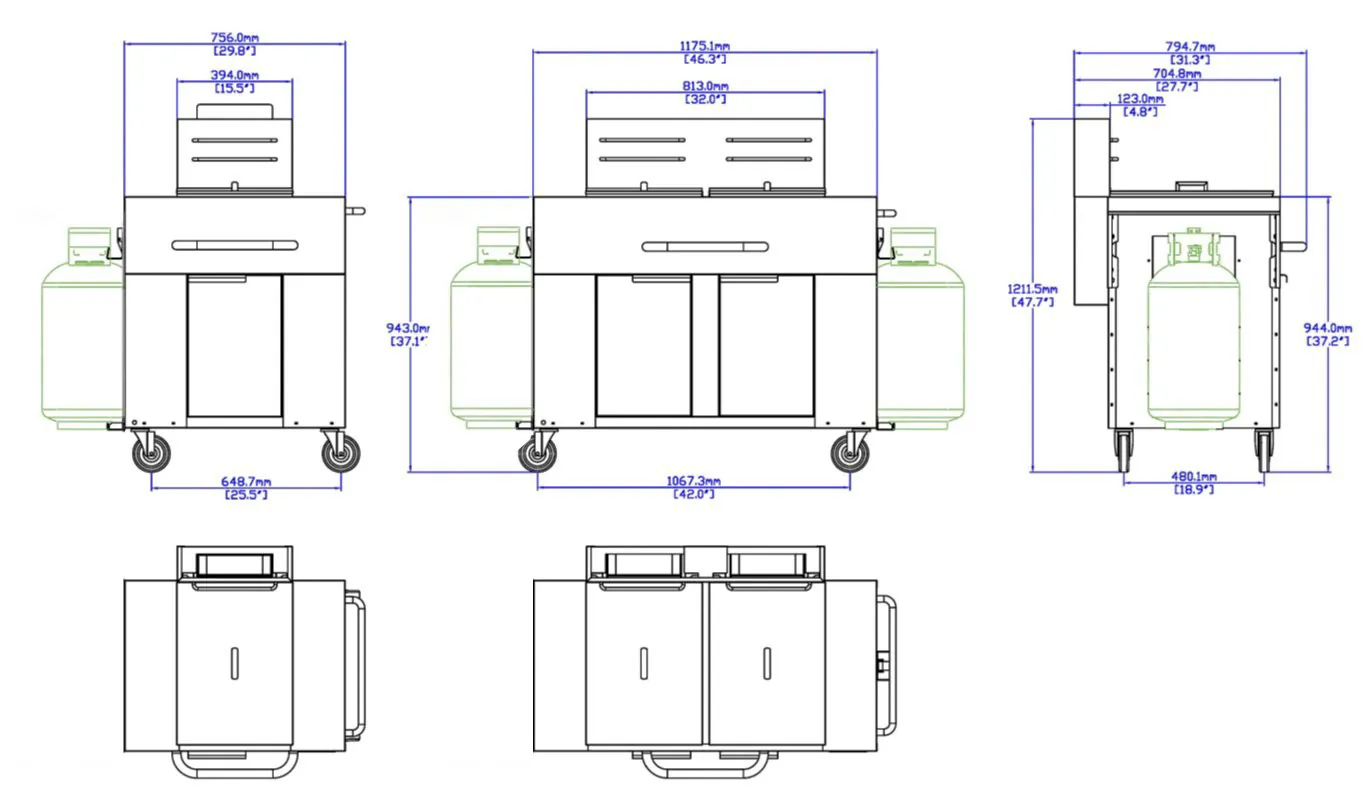

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 1/2 "and 3/4" NPT for Natural Gas, rear gas connections, two stage regulator and hose on LP
- A combination valve with pressure regulator is provided, Not to exceed 14"W.C.(1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- An adequate ventilation system is required for Commercial Cooking Equipment
- Require a 6"clearance at both side and rear adjacent to combustible construction Require a 16" minimum clearance to adjacent open top burner units
- High-altitude orifices: Natural gas for above 2,000 ft; Propane gas for above 3,500 ft
- Rear gas connections, two stage regulators and hoses on LP
