North AmericaGas Convection Ovens
Full size · single or double stack · 54,000 BTU/h
1 model
Details
Convection & Speed Ovens
Digital Gas Convection Ovens
Full size · digital thermostat & timer
Full-size gas convection ovens with a digital thermostat and timer for precise, repeatable bakes.
1 model
CP-DCOG
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- Digital thermostat and 60-minute timer
- 54,000 BTU/h (15.8 kW / 57 MJ)
- Temperature range 150–500°F (66–260°C)
- Two-speed 1/2 hp fan motor
- 5 racks, 10 rack positions; porcelain enamel interior
At a glance
- Product family
- Convection & Speed Ovens
- Models in series
- 1
- Market
- Europe & International
- Gas
- NG LPG
- Electrical
- 220V/1phase · 220V/1phase * 2
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Total Power | Electrical | Overall Dimension | Internal Cavity | Add to inquiry |
|---|---|---|---|---|---|---|
| CP-DCOG single | NG LPG | 54,000 BTU 15.8 kW 57 MJ | 220V/1phase | 38"×44.5"×61.7"96.5×113×157cm | 29"×19.6"×22.5"74×50×57cm | |
| CP-DCOG Double | NG LPG | 54,000BTU * 2 15.8 kW * 2 57 MJ * 2 | 220V/1phase * 2 | 38"×44.5"×68.8"96.5×113×175cm | 29"×19.6"×22.5"*2 74×50×57cm*2 |

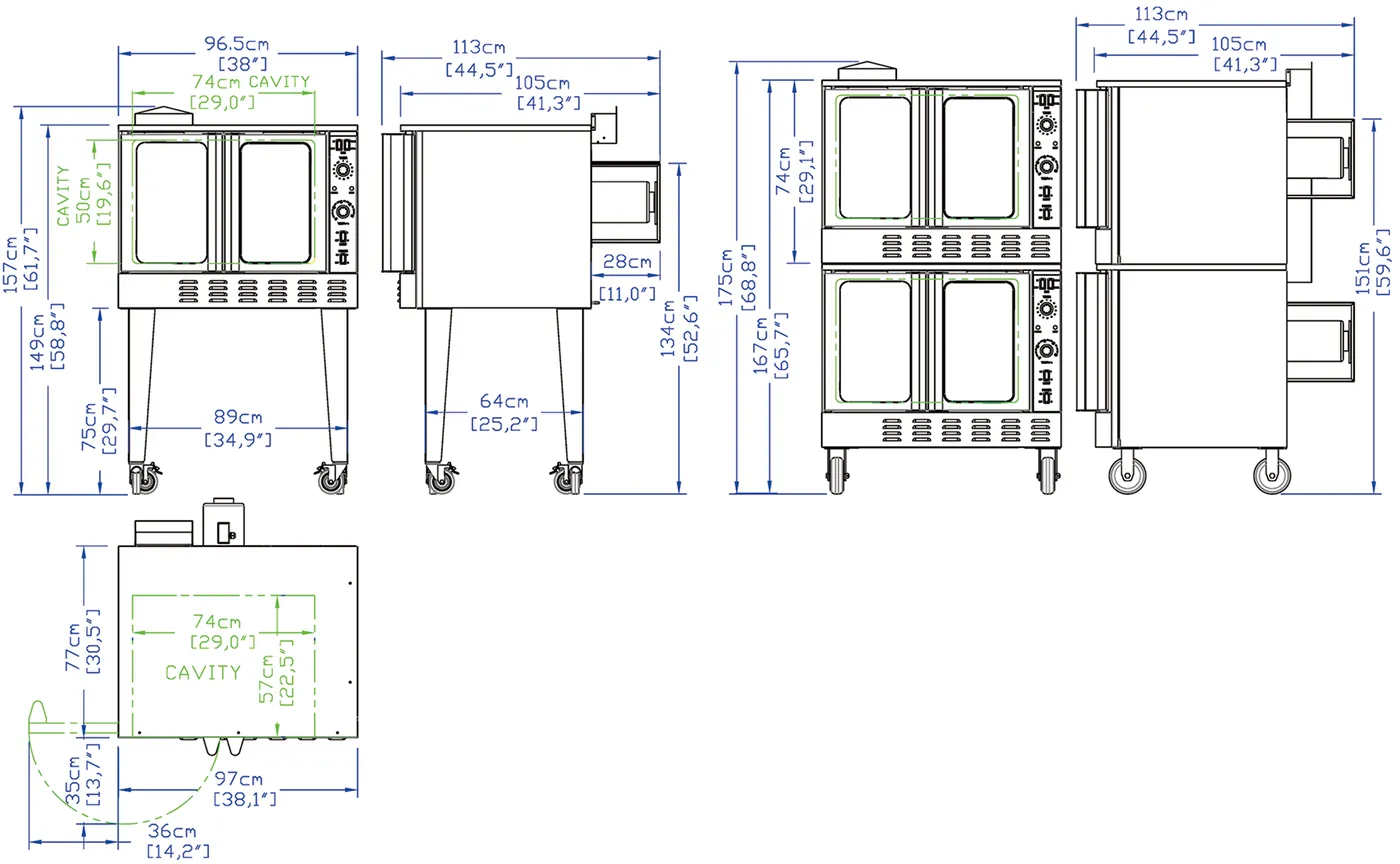

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 220 volt cord & plug supplied with Oven. Other voltages, frequencies and plug types must be specified when ordering
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 3.5" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- An adequate ventilation system is required for Commercial Cooking Equipment
Options & accessories
- DCOG Single includes an oven body plywood box and a single kits carton
- DCOG Double includes two oven body plywood boxes and a double kits carton
- Counter top foot (4 pcs). 2. Steel frame (Stainless Steel or Black paint)
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
