High-Temp Door-Type Dishwasher
40 racks/h · hood type
A high-temperature hood-type dishwasher for restaurants and institutional kitchens.
Certification
CSACSA Sanitation
1 model
CP-DH60
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 40 racks per hour; 0.66 gal water per rack
- High-temperature sanitizing rinse 180–194°F (82–90°C)
- 90 / 120 / 180 / 600 s cycles
- Integrated electric booster; automatic fill
- 208–240V, 3-phase, hard-wired
At a glance
- Product family
- Commercial Dishwashers
- Models in series
- 1
- Market
- North America
- Certification
- CSA, CSA Sanitation
- Drawings
- Dimension drawing below
Technical data
Model CP-DH60 Imperial and metric values as published in our catalog.
| Dimensions (W × D × H) | 28.1"×31.5"×56.1"/73.9"715×800×1425/1877mm |
|---|---|
| Voltage and frequency | 208V-240V / 60Hz / 3Phase |
| Total connected load | 9.86 kW |
| Washing pump power | 0.71 kW |
| Rinsing pump power | 0.15 kW |
| Tank heating power | 3 kW |
| Electric booster power | 9 kW |
| Water consumption per cycle | 0.66 gallon (2.5 L) |
| Water inlet temperature | 122°F (50°C)-140°F (60°C) |
| Water hardness (Ca2+ & Mg2+) | 1.5-4.3 gpg (25-75 mg/L) |
| Racks per hour | 40 |
| Rack size | 20"×20" |
| Tank capacity | 6.9 gallon (26 L) |
| Cycle time (seconds) | 90 / 120 / 180 / 600 |
| Wash temperature | 140F (60°C)-149°F (65°C) |
| Rinse temperature | 180F (82°C)-194°F (90°C) |
| Package size | 34.5"×30.8"×61.7"88×78×157cm |
| Net weight | 181 lbs (82.2 kg) |
| Gross weight | 319 lbs (145 kg) |

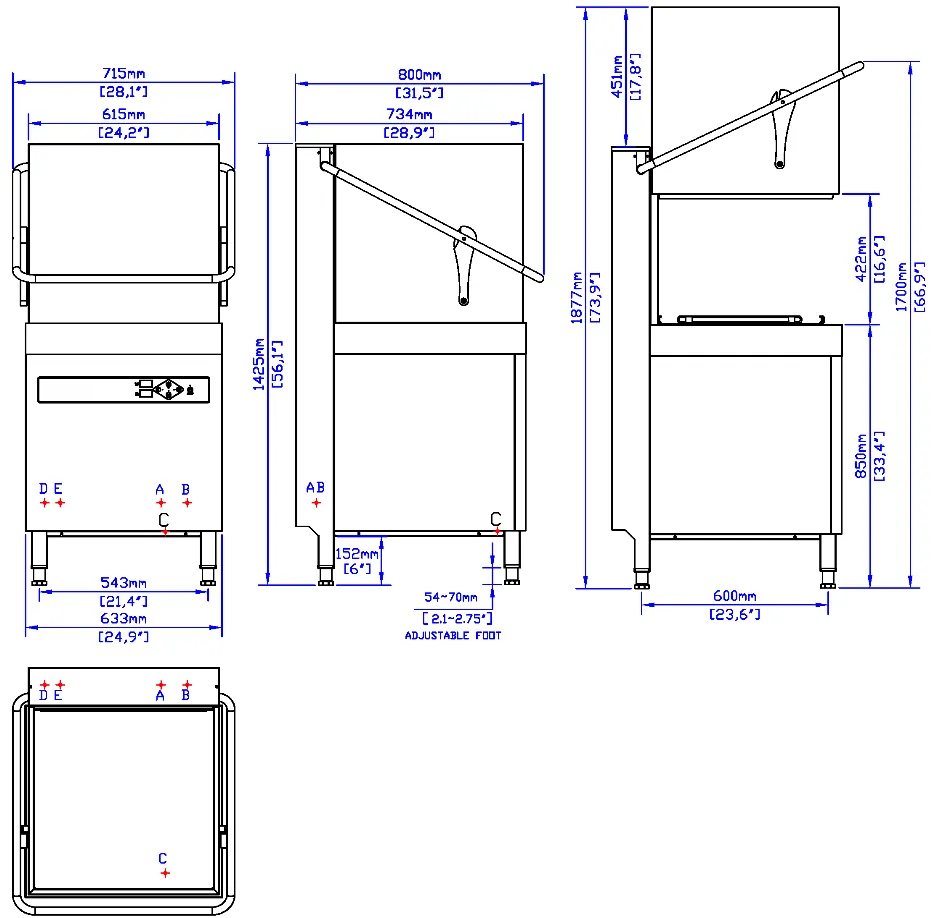

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 208V-240V, 60Hz; hard-wired, 3 phase
- 208V: total 25.3A/7.74 kW
- 240V: total 28.4A/9.86 kW; MCA 35A; MOP 40A
- 3/4" water inlet; flowing pressure 29-58 psi (2-4 bar)
- A Water inlet: 3/4" connection, 5' length
- B Power supply: hard-wired, 208V-240V 60Hz, 3 phases
- C Drain outlet: 1 1/4", 6 1/2' hose length
- D Rinse aid inlet: 1/4" tube, 8' length
- E Detergent inlet: 1/4" tube, 8' length
